Technical specifications
| Thread (UNF) | A (MM) | A (INCH) | Adjustment (MM) | Adjustment (INCH) |
|---|---|---|---|---|
| 1/4" | 114 | 4.488 | 76 | 2.992 |
| 5/16" | 123 | 4.843 | 83 | 3.268 |
| 3/8" | 133 | 5.236 | 92 | 3.622 |
| 7/16" | 152 | 5.984 | 100 | 3.937 |
| 1/2" | 163 | 6.417 | 104 | 4.094 |
| 5/8" | 195 | 7.677 | 126 | 4.961 |
| 3/4" | 255 | 10.039 | 168 | 6.615 |
Description

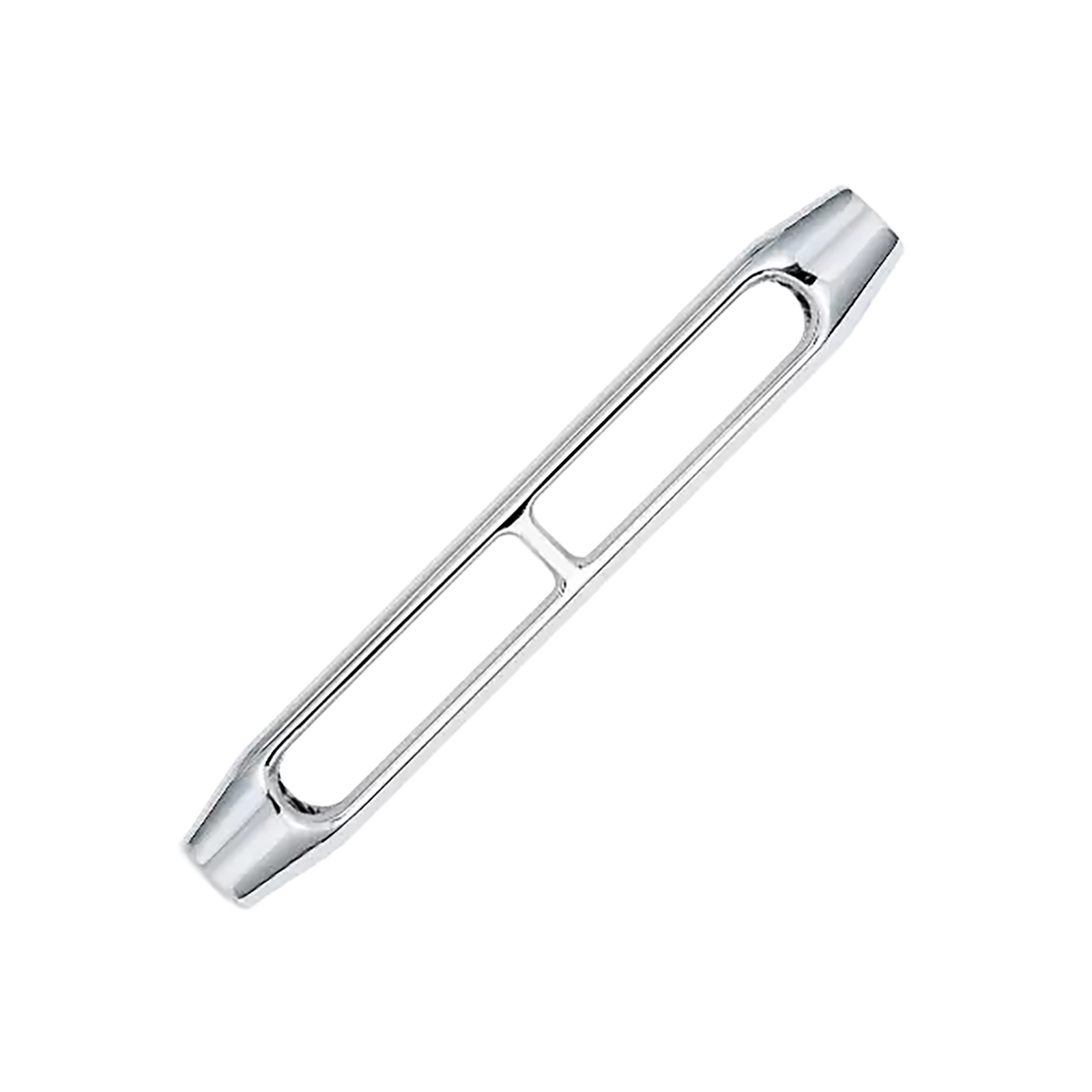

The Bronze Body represents the foundation of premium rigging hardware, featuring the proven Sta-Lok Forged Turnbuckle design in its purest form for maximum flexibility in custom applications. Precision-forged from high-strength bronze alloy, it delivers exceptional integrity, corrosion resistance, and a polished chromium finish that withstands harsh marine environments while maintaining a lustrous appearance. Its aerodynamic form optimises strength-to-weight ratios, reduces wind resistance, and exceeds the breaking load of today’s compacted strand wire ropes, making it one of the strongest and most elegant bronze turnbuckles available worldwide.
Available in seven thread sizes from 1/4” to 3/4” UNF with body lengths from 114mm to 255mm, the Bronze Body provides adjustment ranges of 76mm to 168mm to accommodate diverse rigging needs. Internal threading is machined to exacting tolerances for smooth, reliable operation, while the blank body configuration allows riggers and sailors to create custom assemblies with specific termination combinations. Combining strength, precision, and versatility, it is particularly valuable for performance sailing where every component contributes to overall efficiency.
