Technical specifications
| Thread (UNF) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) | Adjustment (MM) | Adjustment (INCH) |
|---|---|---|---|---|---|---|
| 1/4" | 7.6 | 0.299 | 6.4 | 1/4" | 76 | 2.992 |
| 5/16" | 9.2 | 0.362 | 7.9 | 5/16" | 83 | 3.268 |
| 3/8" | 10.8 | 0.425 | 9.5 | 3/8" | 92 | 3.622 |
| 7/16" | 12.3 | 0.484 | 11.1 | 7/16" | 100 | 3.937 |
| 1/2" | 13 | 0.512 | 12.7 | 1/2" | 104 | 4.094 |
| 5/8" | 18 | 0.709 | 16 | 5/8" | 126 | 4.961 |
Description

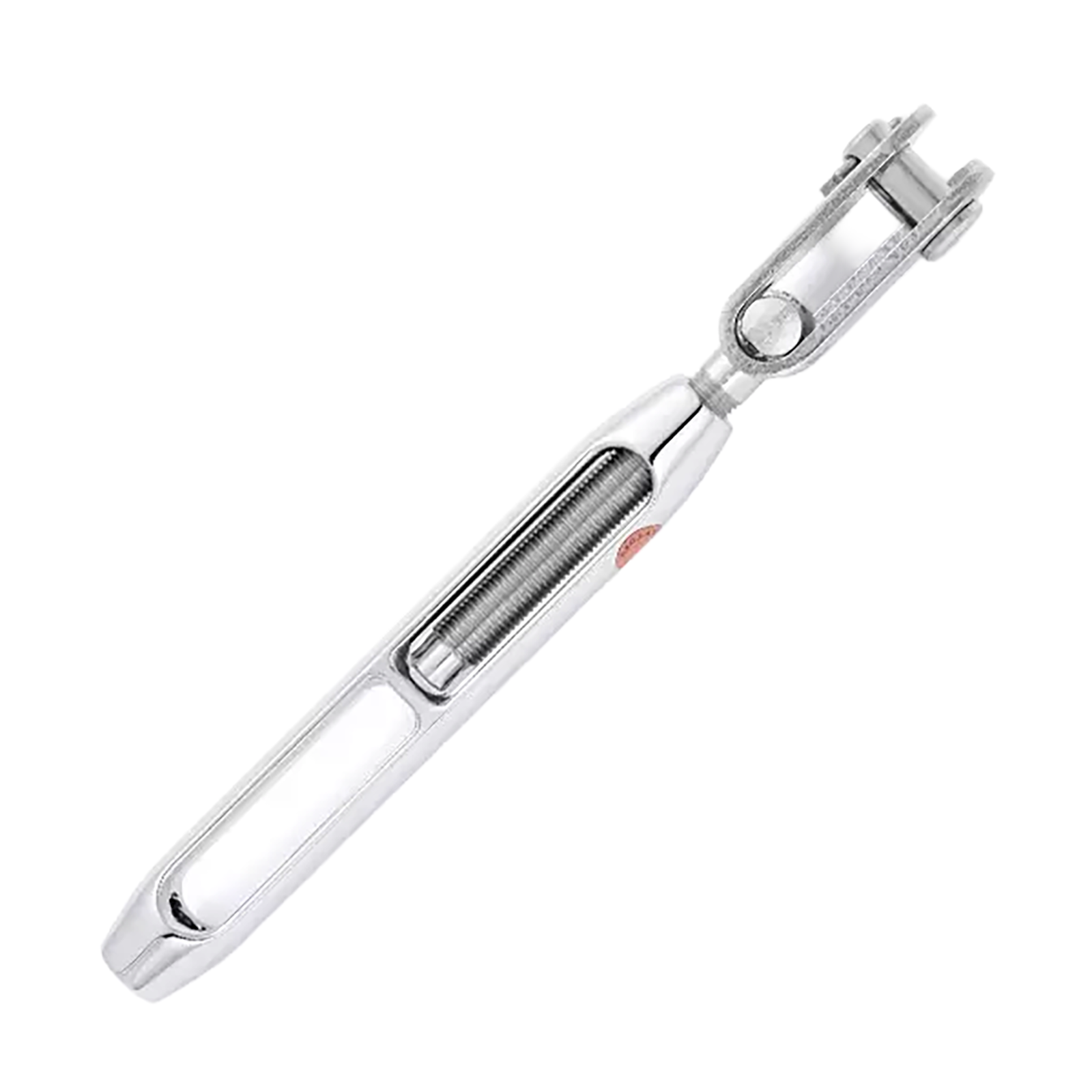

Bronze U-Strap Toggle & Blank represents specialised rigging hardware engineering, combining the proven Sta-Lok Forged Turnbuckle design with an innovative Forged T U-Strap toggle specifically designed for longer chainplate installations. This elegant assembly features advanced toggle articulation that provides full movement capability in two planes, whilst the unique U-strap design accommodates extended chainplate configurations that standard toggle designs cannot effectively serve.
Available in six thread sizes from 1/4" to 5/8" UNF with comprehensive toggle specifications, Bronze U-Strap Toggle & Blank accommodates demanding rigging applications where extended chainplate geometry requires specialised hardware solutions. The toggle widths range from 7.6mm to 18mm with corresponding pin dimensions and adjustment capabilities from 76mm to 126mm, ensuring optimal fit for longer chainplate installations.
The advanced Sta-Lok Forged Turnbuckle design exceeds the breaking load of today's high-strength compacted strand wire ropes through superior forging and machining processes utilising high-strength bronze alloy construction. The aerodynamic design philosophy creates one of the strongest and most elegant bronze turnbuckles available on the world market today, optimising strength-to-weight ratios whilst accommodating the complex geometry requirements of extended chainplate systems.
The precision Forged T U-Strap toggle provides full articulation in two planes whilst offering enhanced compatibility with longer chainplate designs that require greater clearance and geometric flexibility. The blank termination allows for custom rigging solutions including eye swages, or mechanical connections to suit specific installation requirements. This combination makes Bronze U-Strap Toggle & Blank particularly valuable for vessels with extended chainplate configurations where standard toggle designs cannot provide adequate clearance or optimal load distribution.
