Technical specifications
| Wire Size (Metric) | Wire Size (Imperial) | Pack (Quantity) |
|---|---|---|
| 3 MM | 1/8" | 5 |
| 4 MM | 5/32" | 5 |
| 5 MM | - | 5 |
| 6 MM | - | 5 |
| 7 MM | 9/32" | 5 |
| 8 MM | 5/16" | 2 |
| 10 MM | - | 2 |
| 12 MM | - | 1 |
| 14 MM | 9/16" | 1 |
Description

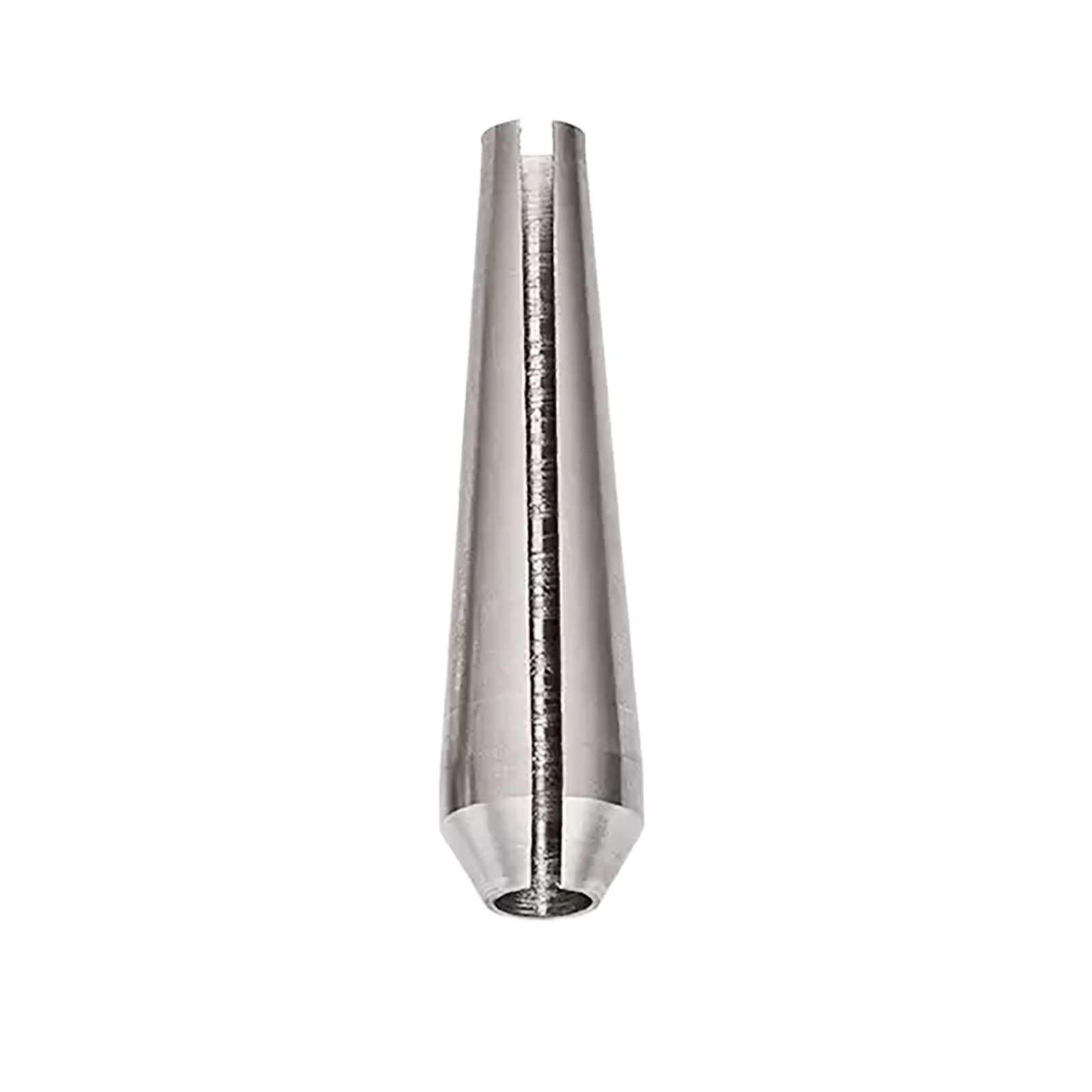

The Sta-Lok 1×19 Wedge is a precision replacement component designed for use with Sta-Lok Self-Fit Terminals on 1×19 stainless steel wire rope. Manufactured from marine-grade 316 stainless steel, each wedge is laser marked for easy identification and ensures a secure, accurate fit during termination.
These wedges are essential when a terminal is reused, providing a new clamping interface to maintain integrity. They are specifically engineered for standard 1×19 constructions and are not suitable for Dyform, compacted or 7-strand wire types. Available across a full range of metric and imperial sizes, they are supplied in packs suitable for both individual replacements and larger rigging projects.
Sta-Lok 1×19 Wedges offer riggers and sailors a reliable, on-site solution to refresh wire terminations without full replacement. Their compatibility, strength and ease of installation make them an essential component for maintaining professional wire rigging systems.
