Technical specifications

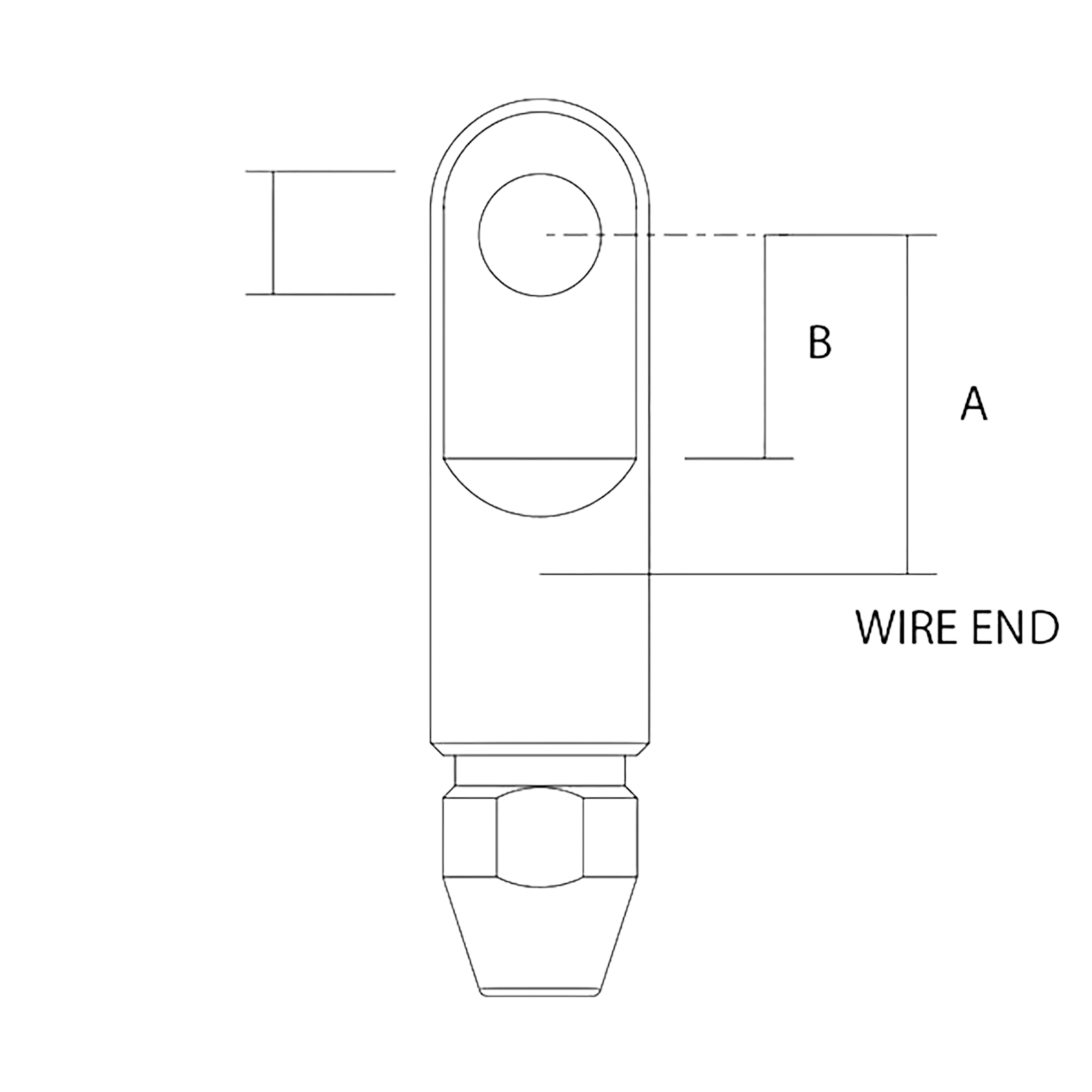

| Wire Size (Metric) | Wire Size (Imperial) | A (MM) | A (INCH) | B (MM) | B (INCH) | D (MM) | D (INCH) | H (MM) | H (INCH) |
|---|---|---|---|---|---|---|---|---|---|
| 3 MM | 1/8" | 17.9 | 0.705 | 10 | 0.393 | 5 | 0.196 | 6.5 | 1/4" |
| 4 MM | 5/32" | 20.3 | 0.8 | 14.7 | 0.58 | 5.8 | 0.23 | 8 | 5/16" |
| 5 MM | - | 24.4 | 0.96 | 18 | 0.71 | 7.5 | 0.295 | 10 | 3/8" |
| 6 MM | - | 31 | 1.219 | 22.2 | 0.875 | 9.5 | 0.375 | 13 | 1/2" |
| 7 MM | 9/32" | 32.5 | 1.281 | 24.6 | 0.969 | 10.5 | 0.413 | 13 | 1/2" |
| 8 MM | 5/16" | 35.7 | 1.406 | 27 | 1.062 | 13.5 | 0.531 | 16 | 5/8" |
| 8 MM | 5/16" | 35.7 | 1.406 | 27 | 1.062 | 13.5 | 0.531 | 16 | 5/8" |
| 10 MM | - | 41.1 | 1.619 | 29.2 | 1.15 | 13.5 | 0.531 | 19 | 3/4" |
| 10 MM | - | 41.1 | 1.619 | 29.2 | 1.15 | 13.5 | 0.531 | 19 | 3/4" |
| 12 MM | - | 44.5 | 1.75 | 32 | 1.26 | 16 | 0.63 | 22 | 7/8" |
| 14 MM | 9/16" | 55.6 | 2.187 | 38.1 | 1.5 | 20 | 0.788 | 25.4 | 1" |
| 14 MM | 9/16" | 55.6 | 2.187 | 38.1 | 1.5 | 20 | 0.788 | 25.4 | 1" |
Description

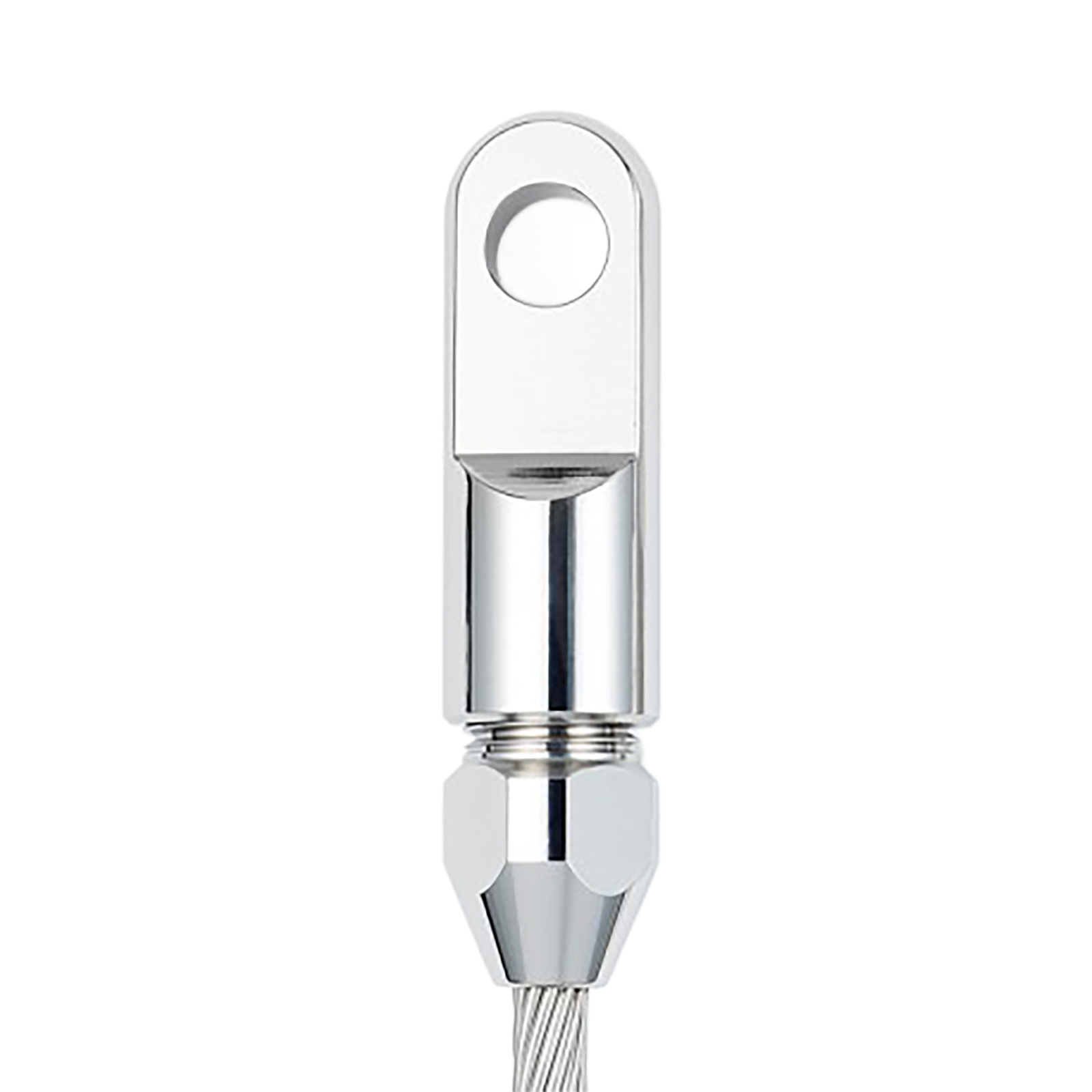

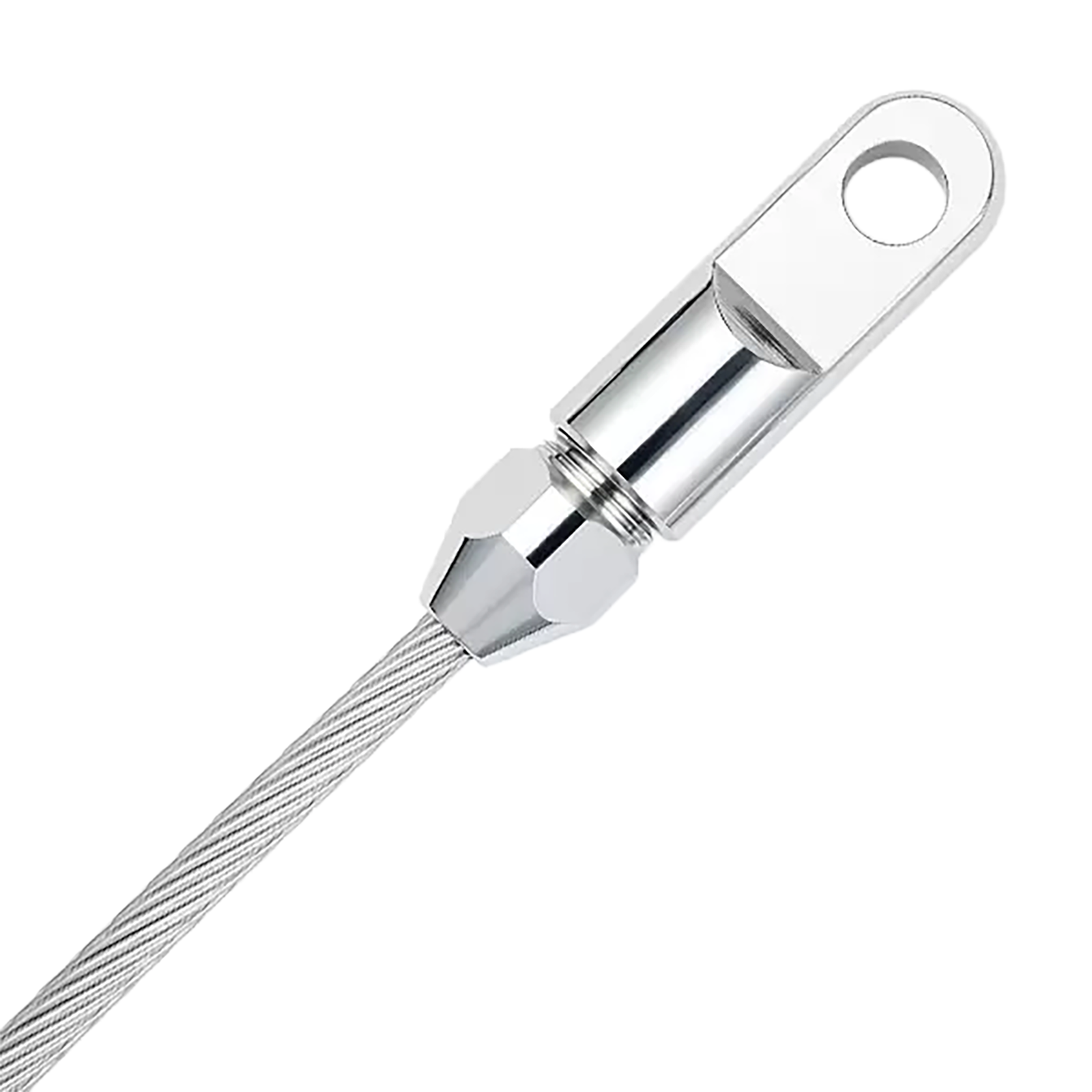

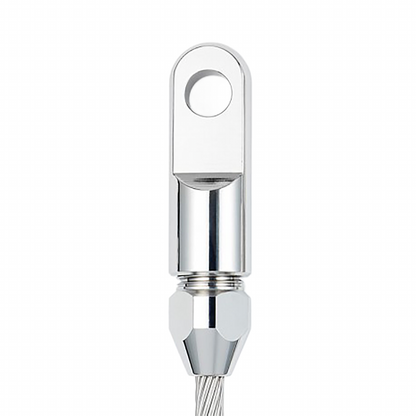

The Sta-Lok Eye is a high-performance self-fit terminal designed as a reusable alternative to swage terminals. Manufactured from 316 stainless steel, it delivers excellent strength, corrosion resistance and longevity. The terminal is quick and simple to install using basic hand tools, with no pre-measurement required.
It is supplied as standard for 1×19 stainless steel wire rope, and wedges are available separately for use with 7×7, 7×19 and compacted strand constructions. The Sta-Lok Eye is suitable for right-hand and left-hand wire lay in ropes sized from 3 mm up to 26 mm (1/8″ to 1″).
In all circumstances, the Sta-Lok Eye termination is stronger than the wire rope itself. Only the wedge needs to be replaced when re-terminating, making this a cost-effective and dependable solution. Its robust build makes it ideal for marine, architectural or industrial applications requiring secure, durable and easily serviced wire rope terminations.
