Technical specifications

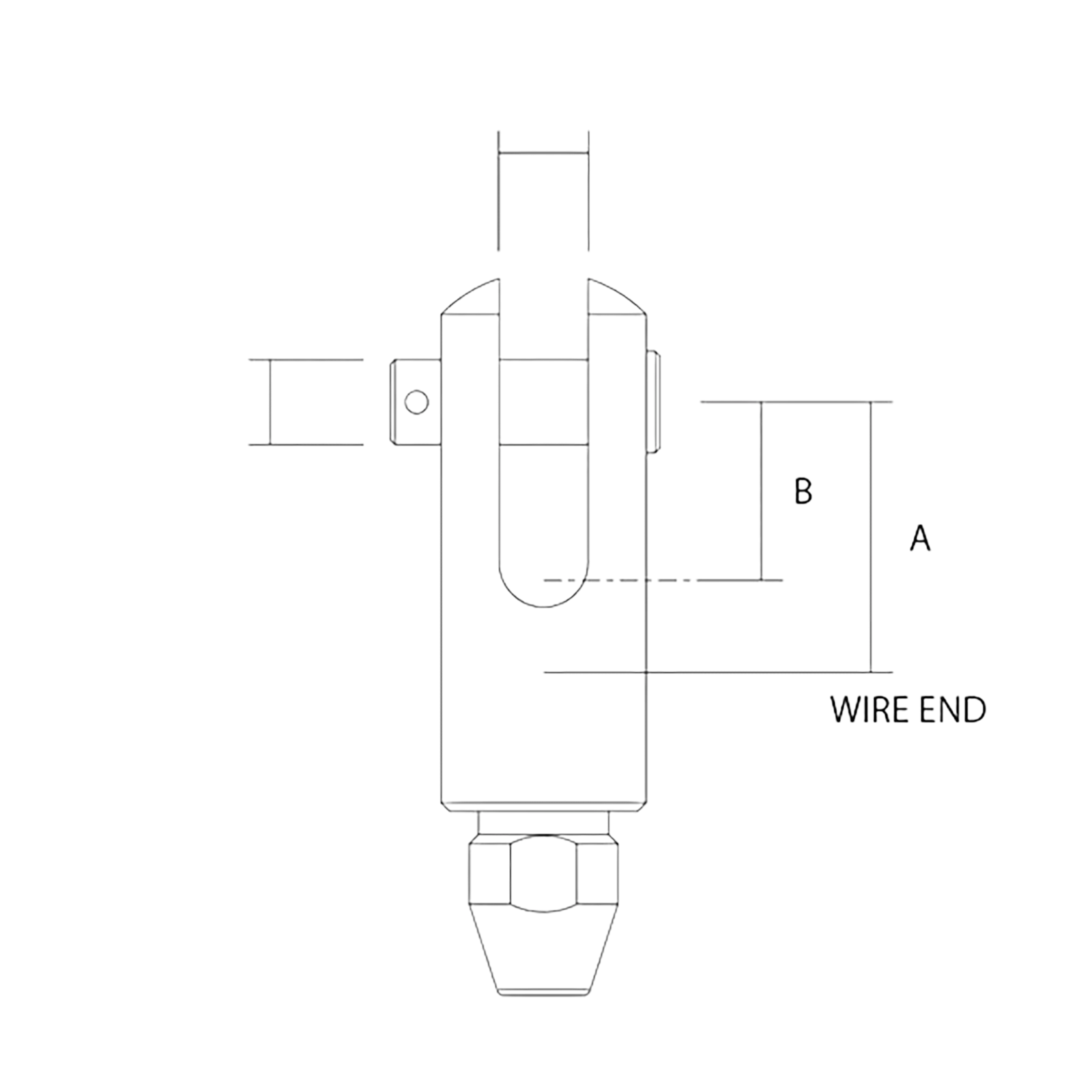

| Wire Size (Metric) | Wire Size (Imperial) | A (MM) | A (INCH) | B (MM) | B (INCH) | D (MM) | D (INCH) | P (MM) | P (INCH) |
|---|---|---|---|---|---|---|---|---|---|
| 3 MM | 1/8" | 15.5 | 0.609 | 10 | 0.393 | 5.5 | 0.216 | 5 | 3/16" |
| 4 MM | 5/32" | 21.1 | 0.83 | 14.7 | 0.58 | 6.4 | 0.25 | 6.4 | 1/4" |
| 5 MM | - | 29.5 | 1.162 | 18 | 0.708 | 8 | 0.315 | 8 | 5/16" |
| 6 MM | - | 37.1 | 1.459 | 22.2 | 0.875 | 11.1 | 0.437 | 10.9 | 7/16" |
| 7 MM | 9/32" | 33.9 | 1.333 | 25.1 | 0.99 | 11.1 | 0.437 | 12.7 | 1/2" |
| 7 MM | 9/32" | 43.9 | 1.729 | 26.3 | 1.035 | 13.7 | 0.54 | 12.6 | 1/2" |
| 8 MM | 5/16" | 43.9 | 1.729 | 26.3 | 1.035 | 13.7 | 0.54 | 12.6 | 1/2" |
| 10 MM | - | 49 | 1.929 | 29.2 | 1.155 | 16 | 0.63 | 15.8 | 5/8" |
| 12 MM | - | 46 | 1.812 | 33.3 | 1.312 | 19.1 | 0.75 | 18.5 | 3/4" |
| 14 MM | 9/16" | 54 | 2.125 | 38.1 | 1.5 | 20.4 | 0.803 | 21.5 | 7/8" |
Description

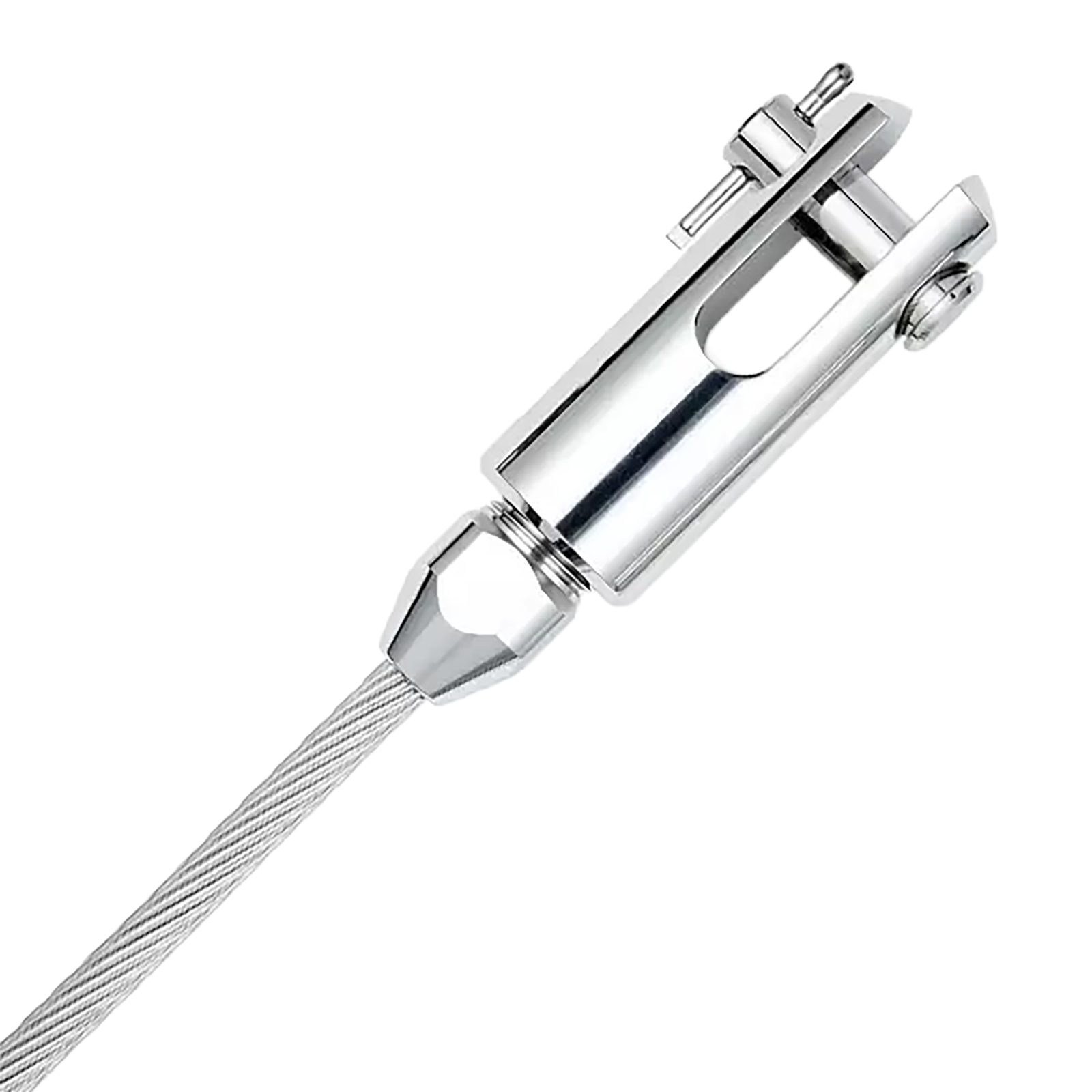

The Sta-Lok Fork is a robust, reusable Self-Fit terminal designed as an alternative to machine swaging, offering strength, reliability and ease of installation. Constructed from marine-grade 316 stainless steel, it is proven to be stronger than the wire rope when fitted correctly.
It is supplied as standard for 1×19 wire rope, with separate wedges available for 7×7, 7×19 and compacted strand constructions. The Fork is suitable for both right-hand and left-hand lay wire ropes, ranging from 3 mm up to 26 mm (1⁄8″ to 1″). Because no pre-measurement is needed and only basic hand tools are required, it is ideal for on-site or onboard assembly.
Sta-Lok Forks work reliably under constant load and moderate shock loading, making them excellent for standing rigging on yachts, architectural tension systems or industrial supports. With laser-marked wedges for correct matching, and reusable terminal bodies, the Sta-Lok Fork is a durable, dependable solution where secure wire terminations are required.
