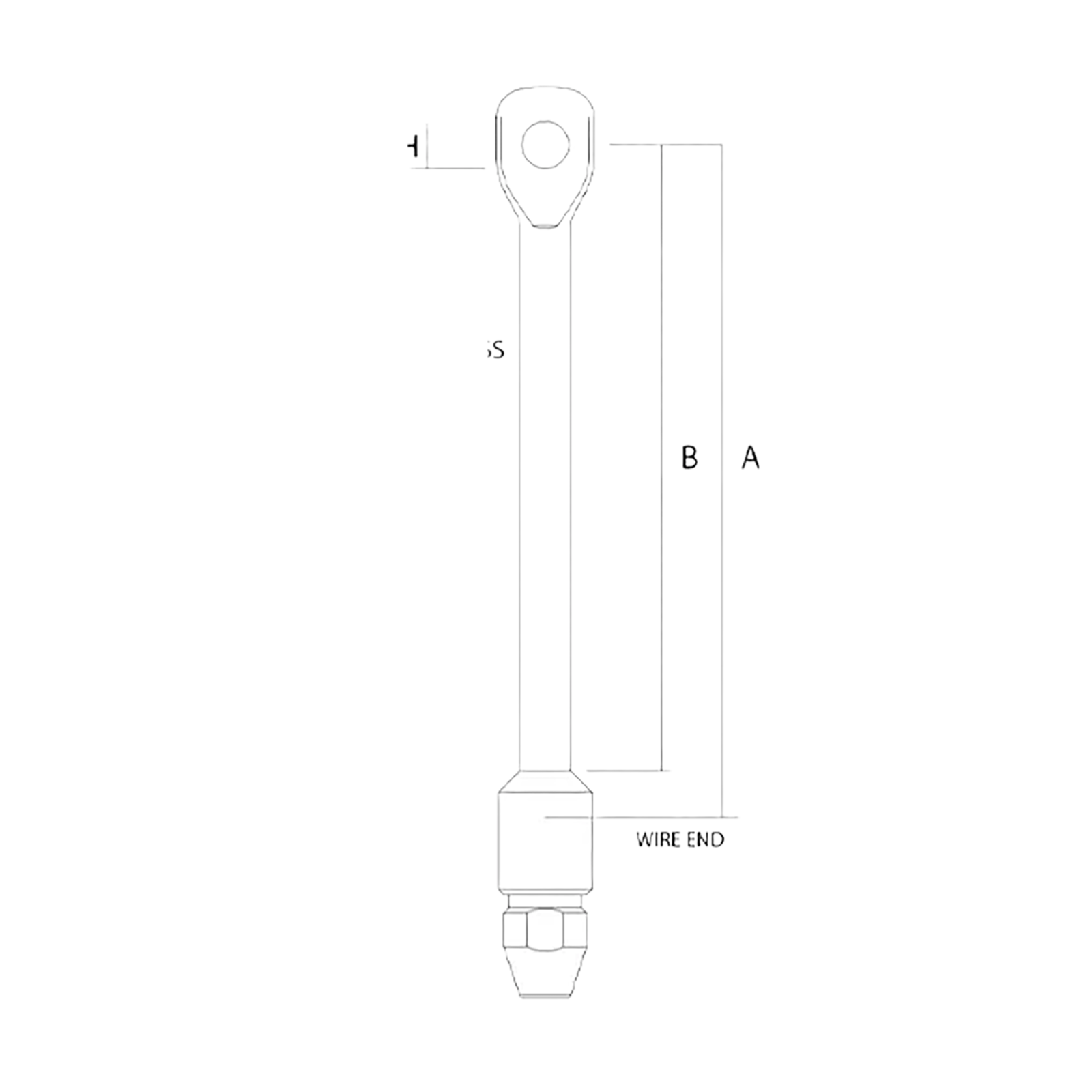

Technical specifications
| Wire Size (Metric) | Wire Size (Imperial) | A (MM) | A (INCH) | B (MM) | B (INCH) | D (MM) | D (INCH) | H (MM) | H (INCH) |
|---|---|---|---|---|---|---|---|---|---|
| 5 MM | - | 106 | 4.187 | 82.5 | 3.25 | 7.5 | 0.295 | 9.8 | 3/8" |
| 6 MM | - | 126 | 4.875 | 100 | 3.937 | 7.5 | 0.295 | 9.8 | 3/8" |
| 6 MM | - | 126 | 4.875 | 100 | 3.937 | 9.5 | 0.375 | 11.5 | 7/16" |
| 6 MM | - | 147 | 5.75 | 117.5 | 4.625 | 12 | 0.472 | 13 | 1/2" |
| 7 MM | 9/32" | 147 | 5.781 | 117.5 | 4.625 | 12 | 0.472 | 13 | 1/2" |
| 8 MM | 5/16" | 147 | 5.781 | 117.5 | 4.625 | 12 | 0.472 | 13 | 1/2" |
| 8 MM | 5/16" | 175 | 6.889 | 136.4 | 5.369 | 13.5 | 0.531 | 16 | 5/8" |
| 10 MM | - | 175 | 6.889 | 136.4 | 5.369 | 13.5 | 0.531 | 16 | 5/8" |
| 12 MM | - | 254 | 10 | 205.8 | 8.102 | 19 | 0.748 | 19.5 | 3/4" |
| 14 MM | 9/16" | 330 | 13 | 280.5 | 11 | 21 | 0.827 | 22.5 | 7/8" |
Description

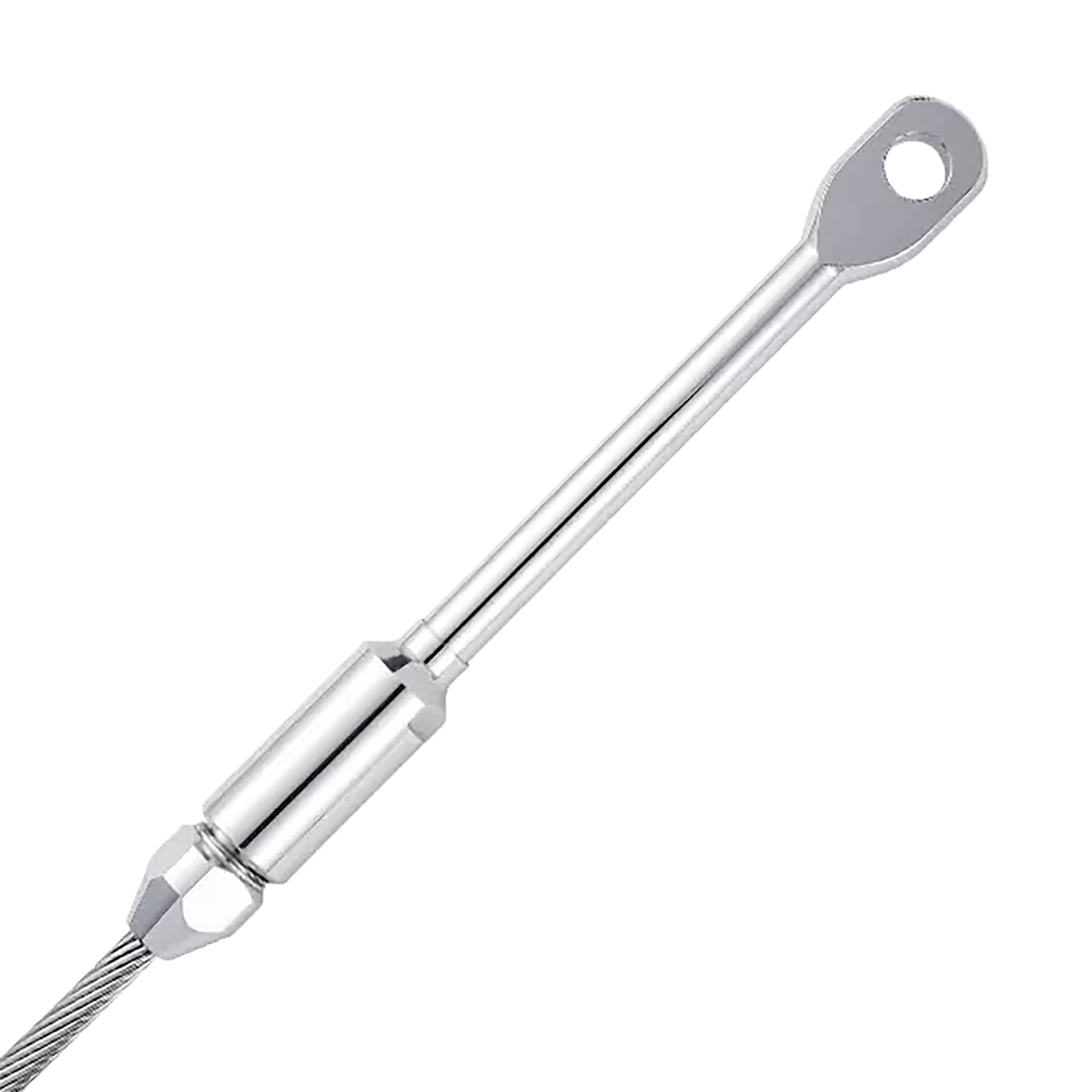

The Sta-Lok Long Eye is a self-fit, reusable terminal made from 316 stainless steel, providing strength, corrosion resistance and long service life for standing rigging and emergency repairs. It is a dependable alternative to swage terminals and can be installed onboard or on-site using only basic hand tools, with no pre-measurement required.
Supplied as standard for 1×19 wire rope, separate wedges are available for 7×7, 7×19 and compacted strand constructions. The Long Eye is suitable for both right-hand and left-hand lay wires, covering diameters from 3 mm up to 26 mm (1/8″ to 1″), making it highly versatile for a range of rigging setups.
Its extended length allows for effective repair of damaged terminals without replacing the entire wire rope. Each wedge is laser-marked for accuracy, ensuring secure and reliable assembly. Built for consistent load and shock resistance, the Sta-Lok Long Eye is trusted in marine, architectural and industrial applications.
