Technical specifications
| Wire Size (Metric) | Wire Size (Imperial) | Additional Information |
|---|---|---|
| 4 MM | 5/32" | - |
| 5 MM | - | - |
| 6 MM | - | - |
| 7 MM | 9/32" | - |
| 7 MM Insulator | 9/32" | *227-07 is a special Terminal Part for Insulators only |
| 8 MM | 5/16" | - |
| 10 MM | - | - |
| 12 MM | - | - |
| 14 MM | 9/16" | - |
Description

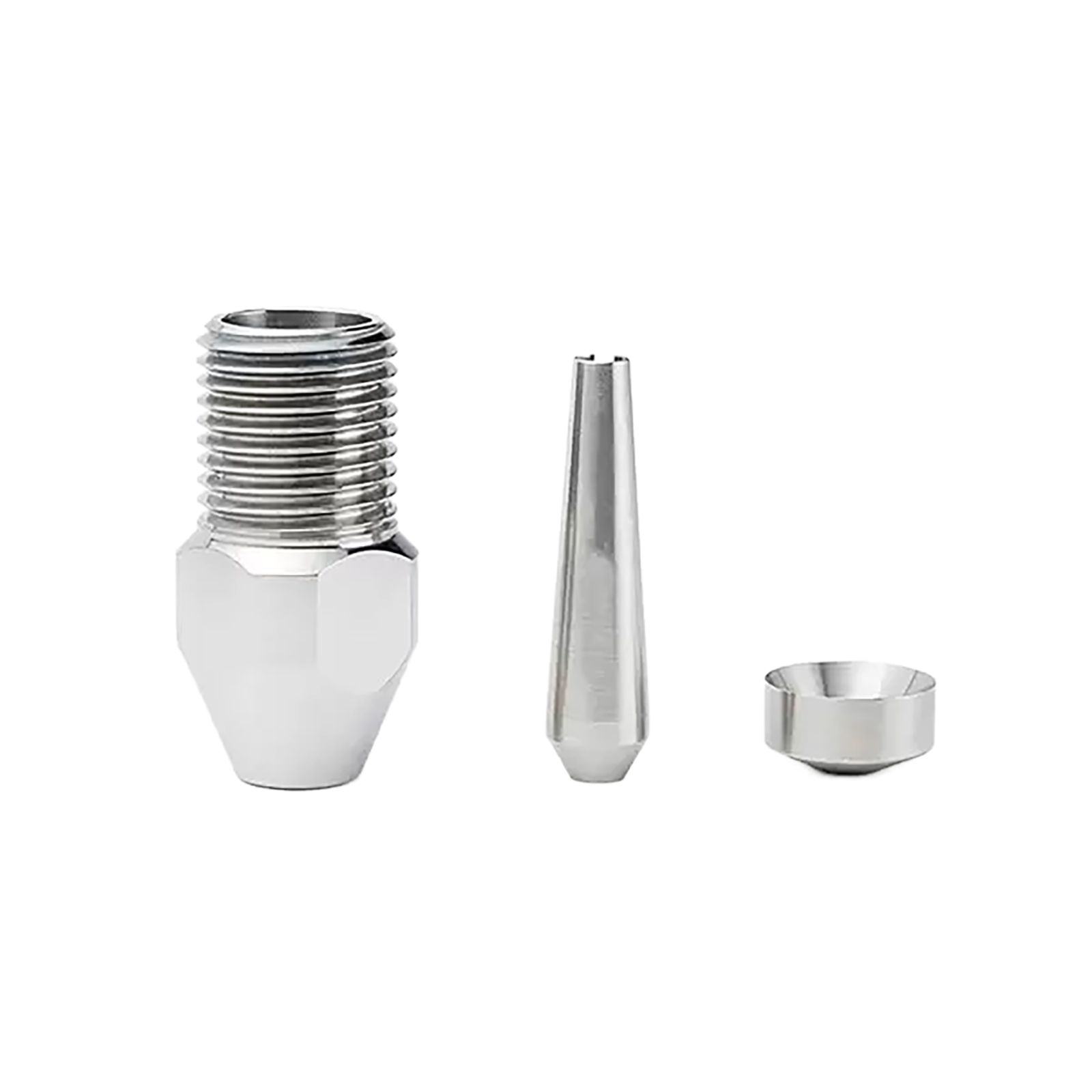

The Sta-Lok Socket, Wedge & Former Kit is a complete self-fit terminal servicing set designed for re-terminating or maintaining Sta-Lok end fittings without replacing the entire assembly. It includes a precision-engineered socket body, matching wedge, and former to ensure correct alignment of wire strands during installation.
Manufactured from marine-grade 316 stainless steel, each component delivers exceptional strength, corrosion resistance, and reliability in demanding marine and structural environments. The wedges are laser-marked for easy identification, ensuring the correct match for various wire constructions including 1×19, 7×7, 7×19, and compacted strand.
Suitable for wire diameters from 3 mm up to 26 mm (1/8″ to 1″), this kit enables straightforward on-site assembly using only basic hand tools and requires no pre-measurement. Durable and reusable, it allows for secure, professional-quality wire terminations with full load-bearing integrity, ensuring long-term performance for yacht rigging, architectural, and industrial applications.
