Technical specifications
| Wire Size (Metric) | Wire Size (Imperial) | A (MM) | A (INCH) | C (MM) | C (INCH) |
|---|---|---|---|---|---|
| 4 MM | 5/32" | 11.1 | 0.437 | 14.3 | 0.562 |
| 5 MM | - | 14.3 | 0.563 | 15.9 | 0.625 |
| 6 MM | - | 20.6 | 0.812 | 19.1 | 0.75 |
| 7 MM | 9/32" | 19.1 | 0.75 | 22.2 | 0.875 |
| 8 MM | 5/16" | 19.1 | 0.75 | 25.4 | 1 |
| 10 MM | - | 24 | 0.937 | 28.6 | 1.125 |
| 12 MM | - | 25.4 | 1 | 34.9 | 1.375 |
Description

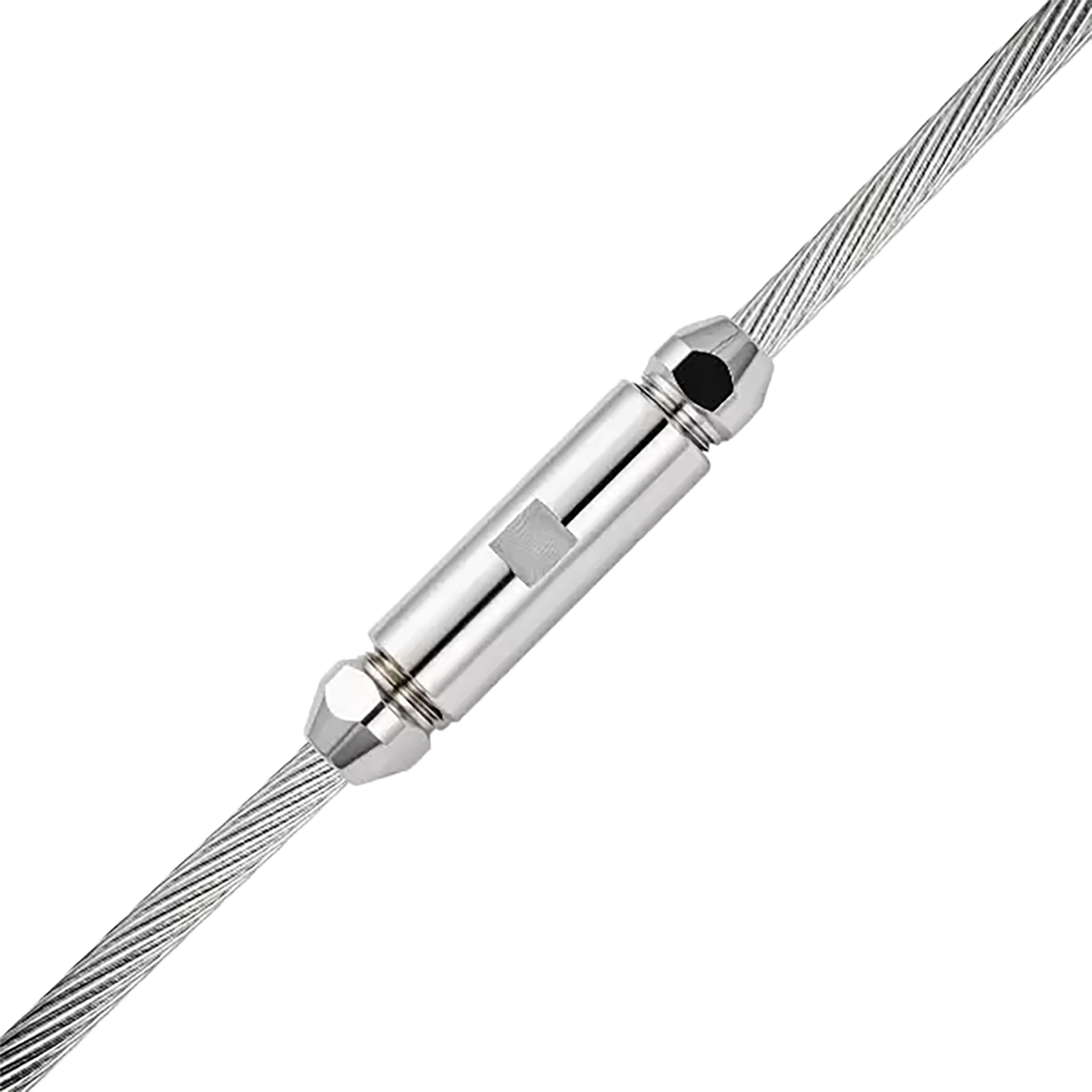

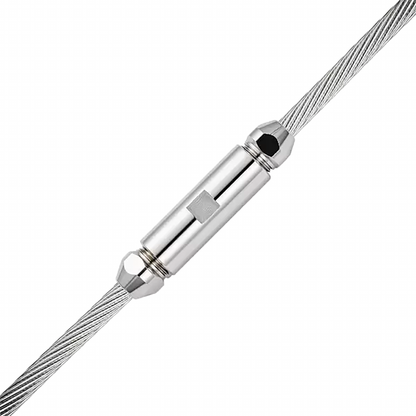

The Sta-Lok Stay Connector is a durable and practical self-fit terminal designed to securely join two pieces of wire rope without the need for swaging. Manufactured from marine-grade 316 stainless steel, it offers outstanding corrosion resistance and strength, maintaining performance that exceeds the breaking load of the wire rope itself.
Installation is straightforward and requires only basic hand tools, making it ideal for onboard or on-site repairs. The Stay Connector is supplied as standard for 1×19 wire, with optional wedges available for 7×7, 7×19 and compacted strand constructions, providing flexibility across different rigging configurations.
Suitable for both right-hand and left-hand lay wires, the connector accommodates diameters from 4 mm to 12 mm, covering a wide range of marine and structural applications. Whether used for emergency rigging repairs or permanent installations, the Sta-Lok Stay Connector delivers secure, reusable, and long-lasting wire rope connections with professional-grade reliability.
