Technical specifications

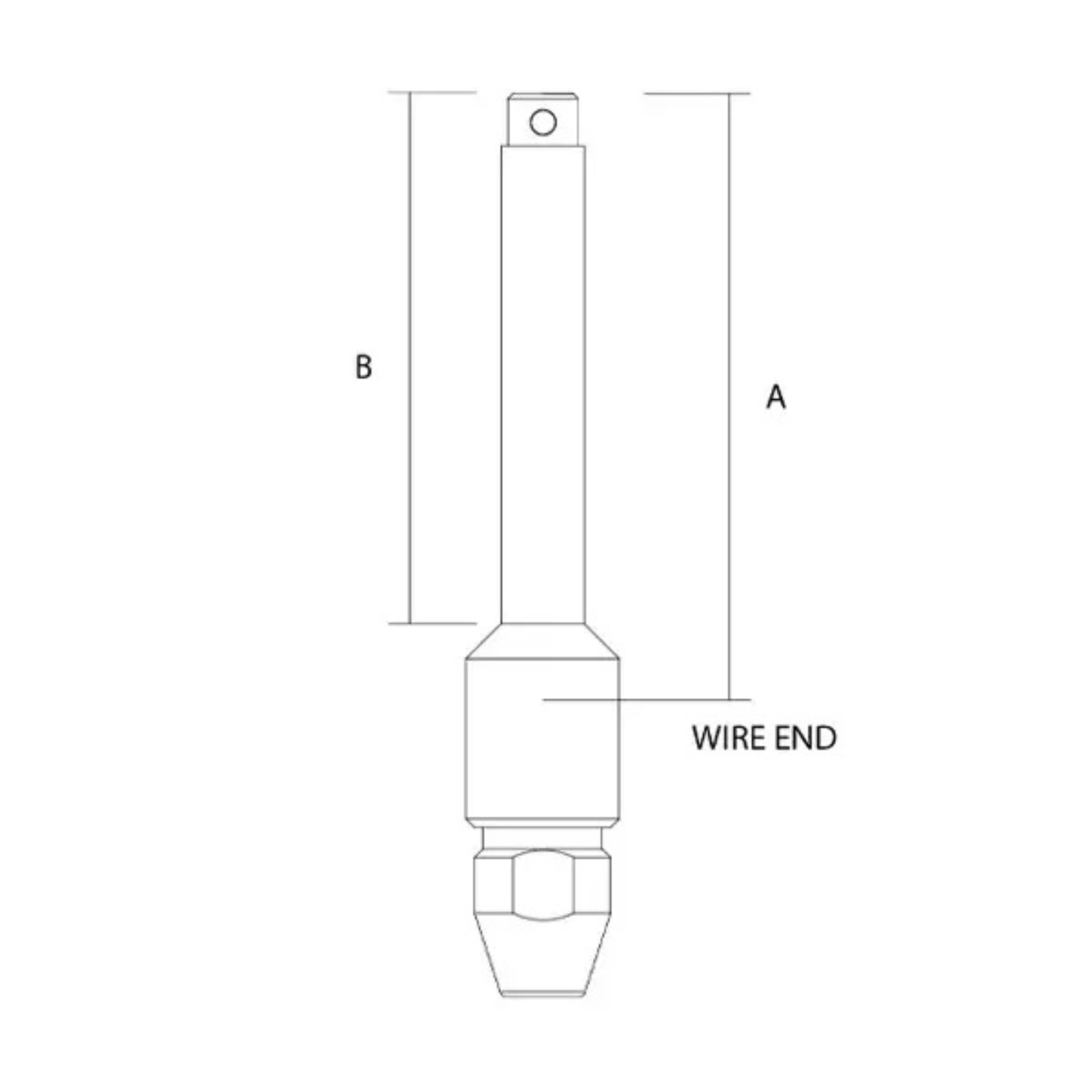

| Wire Size (Metric) | Wire Size (Imperial) | Thread (UNF) | A (MM) | A (INCH) | B (MM) | B (INCH) |
|---|---|---|---|---|---|---|
| 3 MM | 1/8" | 1/4" | 64.3 | 2.532 | 55.6 | 2.187 |
| 4 MM | 5/32" | 1/4" | 65 | 2.562 | 55.6 | 2.187 |
| 4 MM | 5/32" | 5/16" | 67.5 | 2.656 | 56.7 | 2.232 |
| 5 MM | - | 5/16" | 70.6 | 2.78 | 58.7 | 2.312 |
| 5 MM | - | 3/8" | 84 | 3.312 | 66.7 | 2.625 |
| 6 MM | - | 7/16" | 93 | 3.65 | 74.6 | 2.937 |
| 7 MM | 9/32" | 1/2" | 97 | 3.812 | 82 | 3.25 |
| 8 MM | 5/16" | 1/2" | 98 | 3.875 | 82 | 3.25 |
| 8 MM | 5/16" | 5/8" | 110 | 4.343 | 95.2 | 3.75 |
| 10 MM | - | 5/8" | 129 | 5.062 | 123.8 | 4.875 |
| 12 MM | - | 7/8" | 139 | 5.468 | 128.3 | 5.05 |
| 14 MM | 9/16" | 7/8" | 170 | 6.687 | 139.7 | 5.5 |
| 14 MM | 9/16" | 1" | 170 | 6.687 | 139.7 | 5.5 |
Description

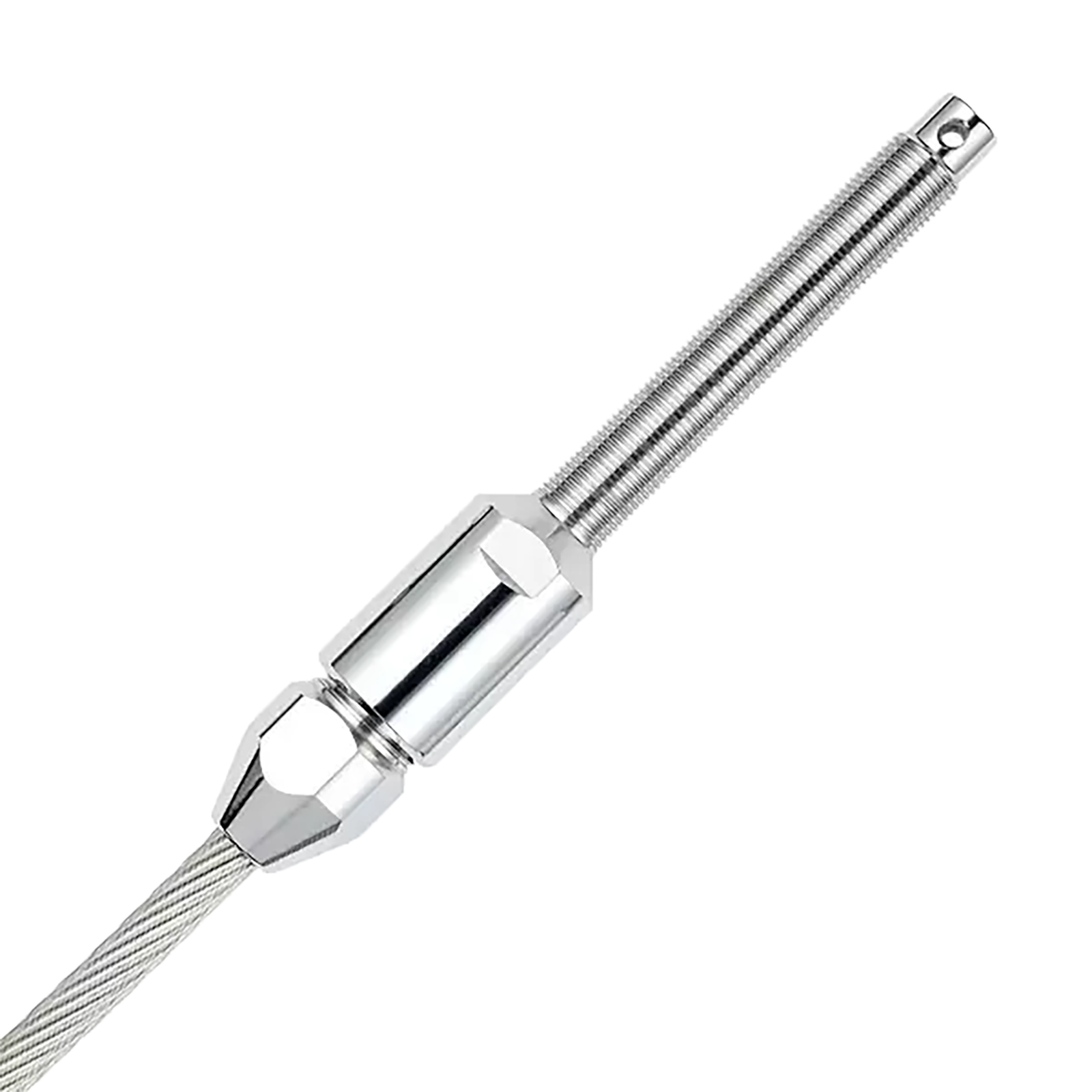

The Sta-Lok Stud is a high-strength, reusable swageless terminal designed for dependable performance in demanding rigging applications. Manufactured from 316 stainless steel, it provides outstanding corrosion resistance, making it ideal for marine and architectural environments. It supports both right-hand and left-hand lay wire rope and is supplied ready for 1×19 strand wire, with optional wedges available for 7-strand or compacted strand constructions.
Installation is simple and requires only basic hand tools, with no need for specialist swaging equipment or precise pre-measuring. When correctly fitted, the Sta-Lok Stud is guaranteed to be stronger than the wire itself, offering lasting security under both static and dynamic loads. Each fitting includes a split pin for added locking safety after installation.
Trusted by professional riggers worldwide, the Sta-Lok Stud combines strength, simplicity, and reusability, providing a durable, high-quality solution for a wide range of tensioning and termination needs.
