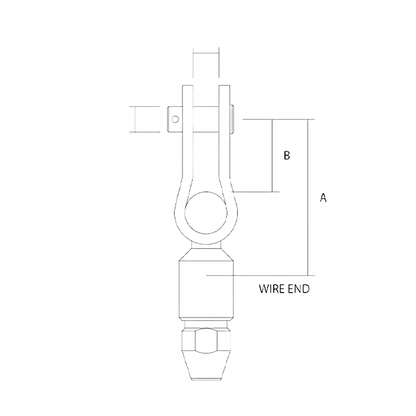

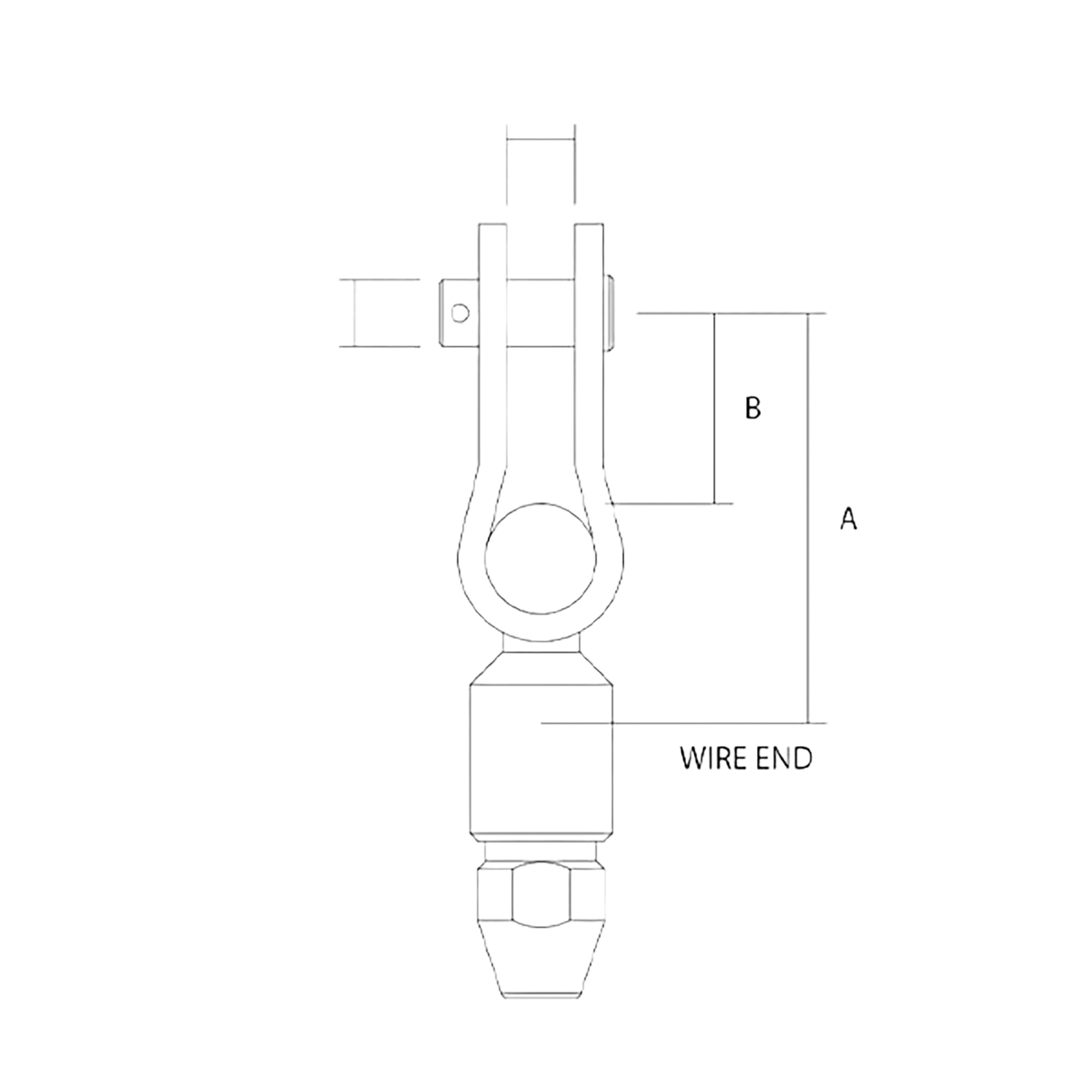

Technical specifications
| Wire Size (Metric) | Wire Size (Imperial) | A (MM) | A (INCH) | B (MM) | B (INCH) | D (MM) | D (INCH) | P (MM) | P (INCH) |
|---|---|---|---|---|---|---|---|---|---|
| 4 MM | 5/32" | 48 | 1.89 | 19 | 0.75 | 8.4 | 0.331 | 7.9 | 5/16" |
| 5 MM | - | 48 | 1.89 | 19 | 0.75 | 8.4 | 0.331 | 7.9 | 5/16" |
| 5 MM | - | 56 | 2.205 | 20 | 0.787 | 9.9 | 0.39 | 9.5 | 3/8" |
| 6 MM | - | 56 | 2.205 | 20 | 0.787 | 9.9 | 0.39 | 9.5 | 3/8" |
| 6 MM | - | 61 | 2.406 | 25 | 0.984 | 11.5 | 0.453 | 11.5 | 7/16" |
| 7 MM | 9/32" | 70 | 2.755 | 28 | 1.102 | 13.1 | 0.516 | 12.7 | 1/2" |
| 8 MM | 5/16" | 72 | 2.835 | 28 | 1.102 | 13.1 | 0.516 | 12.7 | 1/2" |
| 8 MM | 5/16" | 87 | 3.422 | 33 | 1.299 | 16.3 | 0.642 | 16 | 5/8" |
| 10 MM | - | 87 | 3.422 | 33 | 1.299 | 16.3 | 0.642 | 16 | 5/8" |
| 12 MM | - | 104 | 4.094 | 34 | 1.339 | 25 | 0.984 | 19.1 | 3/4" |
Description

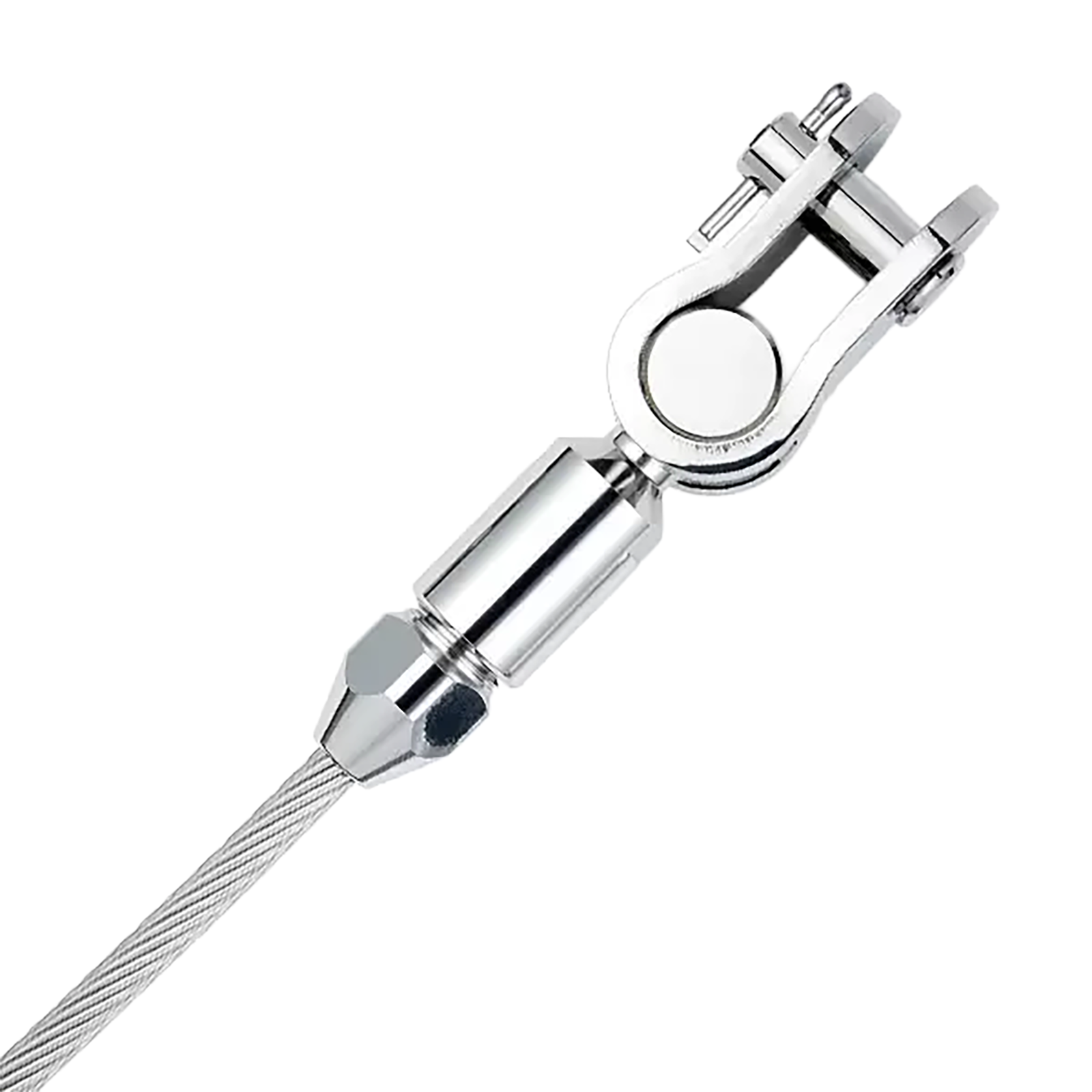

The Sta-Lok Toggle Fork is a strong, reusable self-fit terminal designed for use in demanding rigging and tensioning systems. Manufactured from high-quality 316 stainless steel, it delivers excellent corrosion resistance and long-term durability, making it ideal for marine, architectural, and industrial applications. The toggle design allows articulation in two planes, helping to prevent misalignment and reducing strain on fittings and wire under load.
Supplied ready for 1×19 strand wire, the Sta-Lok Toggle Fork can also be adapted for 7-strand or compacted strand wire using interchangeable wedges. Installation is straightforward, requiring only basic hand tools and no pre-measuring. When correctly assembled, the fitting is stronger than the wire itself, ensuring secure and lasting performance.
With its combination of strength, flexibility, and ease of installation, the Sta-Lok Toggle Fork provides a professional-grade solution for both new rigging systems and maintenance applications.
