Technical specifications
| Thread (UNF) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) | Adjustment (MM) | Adjustment (INCH) |
|---|---|---|---|---|---|---|
| 3/4" | 20 | 0.787 | 18.5 | 3/4" | 124 | 4.882 |
| 7/8" | 25 | 0.984 | 21.5 | 7/8" | 144 | 5.669 |
| 1" | 28 | 1.102 | 25 | 1" | 174 | 6.85 |
| 1 1/8" | 31.5 | 1.24 | 28.2 | 1 1/8" | 214 | 8.425 |
| 1 1/4" | 35 | 1.378 | 31.5 | 1 1/4" | 260 | 10.236 |
| 1 3/8" | 38 | 1.496 | 34.6 | 1 3/8" | 260 | 10.236 |
Description

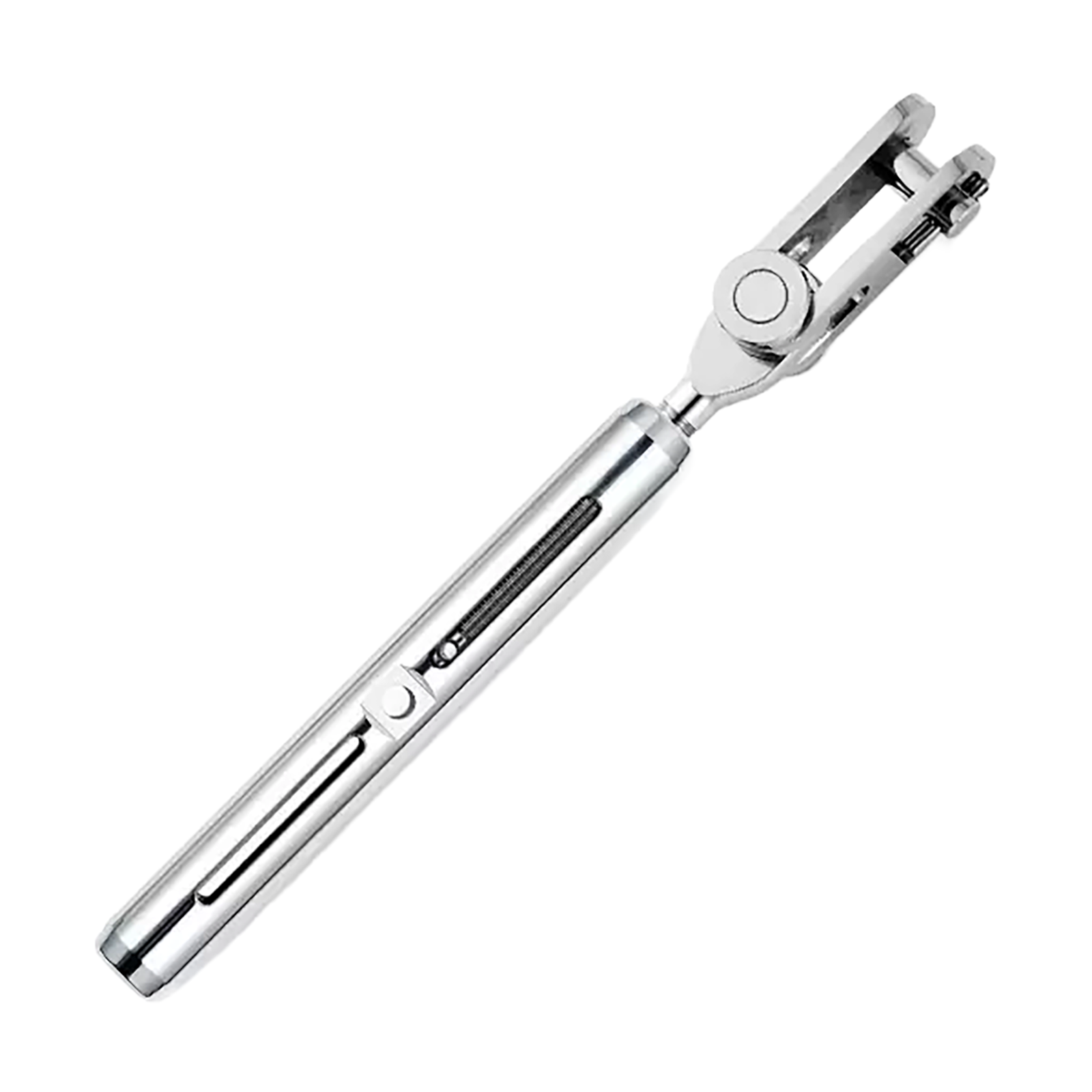

The Supajust Eye Toggle & Blank is a high-quality open-body turnbuckle designed to provide precise adjustment and flexibility in demanding rigging systems. Constructed from polished solid 316 stainless steel, it offers exceptional strength, corrosion resistance, and long-term reliability. Threaded bronze inserts are permanently sealed into each end of the body to prevent galling and ensure smooth, secure adjustment under heavy loads.
One end of the fitting features an eye toggle that allows articulation in two planes, reducing stress from misalignment and movement under load. The opposite end is supplied blank, offering versatility for custom rigging applications or future fitting configurations. Positive locking is achieved with traditional split pins, ensuring stability and safety in all conditions.
Available in a range of thread sizes from 3/8” to 1 3/8” UNF, the Supajust Eye Toggle & Blank delivers dependable performance for professional riggers, sailors, and yacht owners.
