Technical specifications

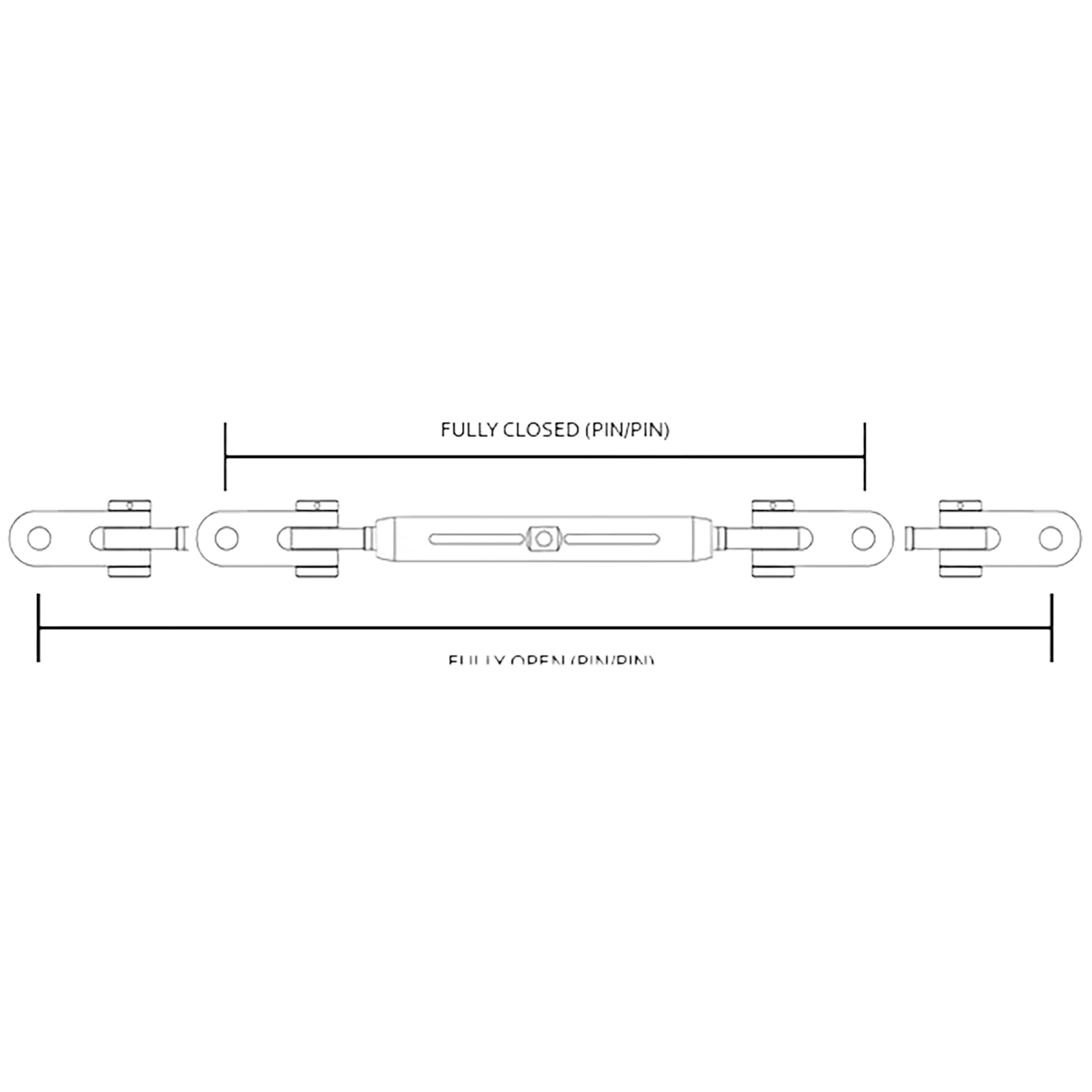

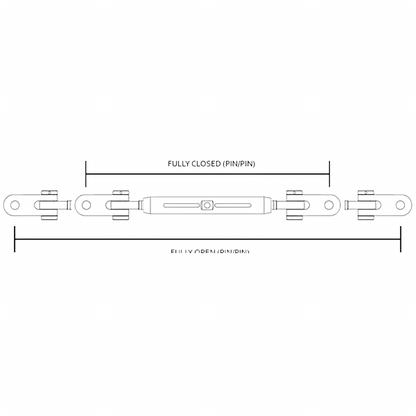

| Thread (UNF) | Fully Open (MM) | Fully Closed (MM) | Fully Open (INCH) | Fully Closed (INCH) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 673 | 549 | 26.496 | 21.614 | 20 | 0.787 | 18.5 | 3/4" |
| 7/8" | 747 | 603 | 29.409 | 23.74 | 25 | 0.984 | 21.5 | 7/8" |
| 1" | 850 | 675 | 33.465 | 26.575 | 28 | 1.102 | 25 | 1" |
| 1 1/8" | 980 | 766 | 38.583 | 30.157 | 31.5 | 1.24 | 28.2 | 1 1/8" |
| 1 1/4" | 1131 | 874 | 44.528 | 34.409 | 35 | 1.378 | 31.5 | 1 1/4" |
| 1 3/8" | 1210 | 950 | 47.638 | 37.402 | 38 | 1.496 | 34.6 | 1 3/8" |
Description

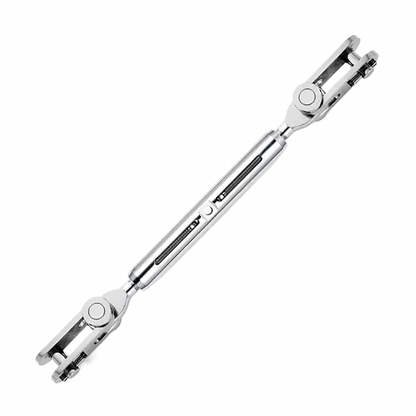

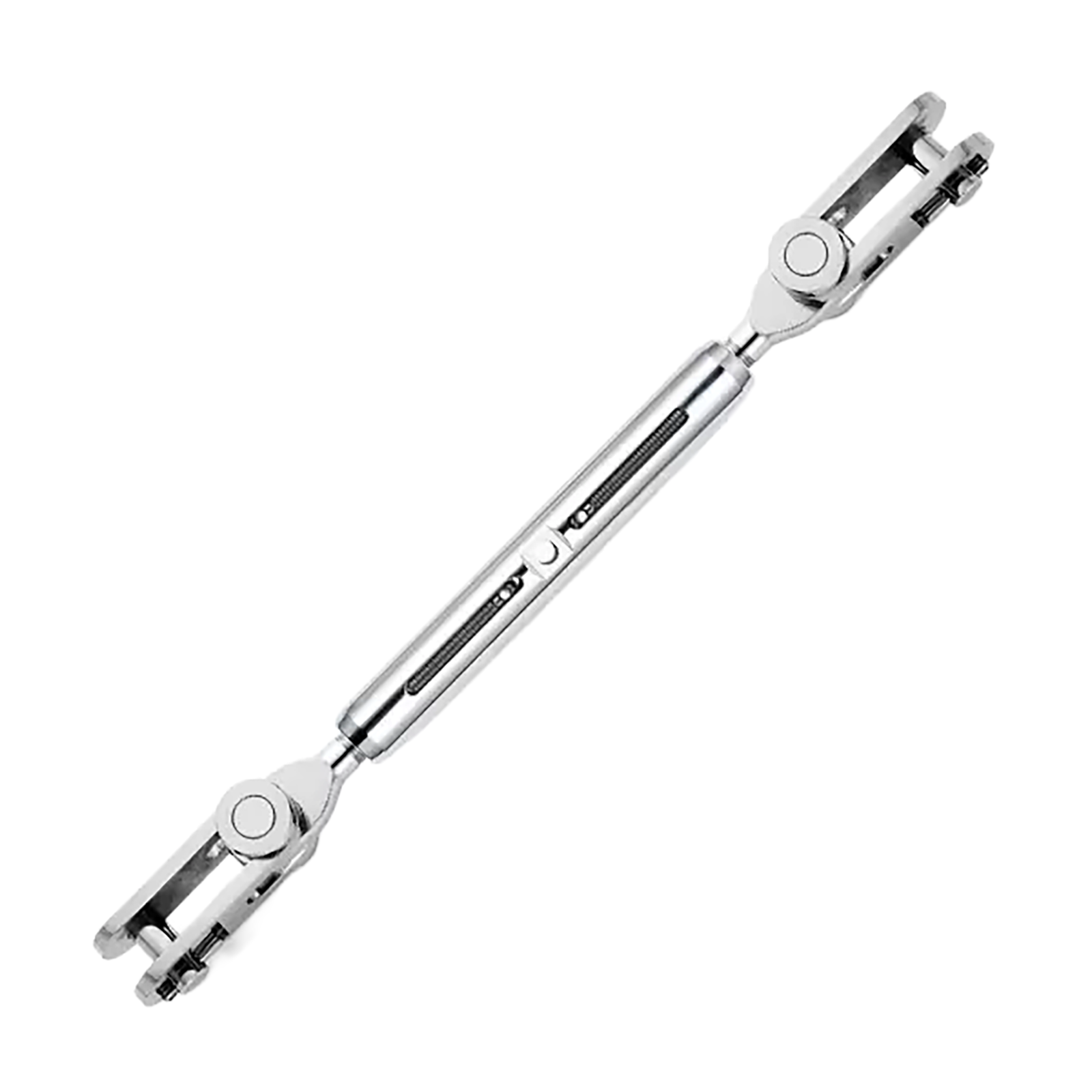

The Supajust Eye Toggle & Eye Toggle is a premium open-body turnbuckle designed for maximum flexibility and strength in marine and architectural rigging systems. Machined from polished solid 316 stainless steel, it provides excellent corrosion resistance and long-term durability. Threaded bronze inserts are permanently sealed into each end of the body, preventing galling and ensuring smooth, reliable adjustment even under heavy loads.
Fitted with an articulated eye toggle at both ends, this configuration allows movement in two planes, reducing side loads and compensating for misalignment or dynamic stresses. The open-body design allows easy inspection of thread engagement, while positive locking is achieved with traditional split pins to ensure secure operation in all conditions.
Available in a range of thread sizes and compatible with various wire diameters, the Supajust Eye Toggle & Eye Toggle offers precise tensioning, robust construction, and dependable performance for professional riggers and sailors.
