Technical specifications

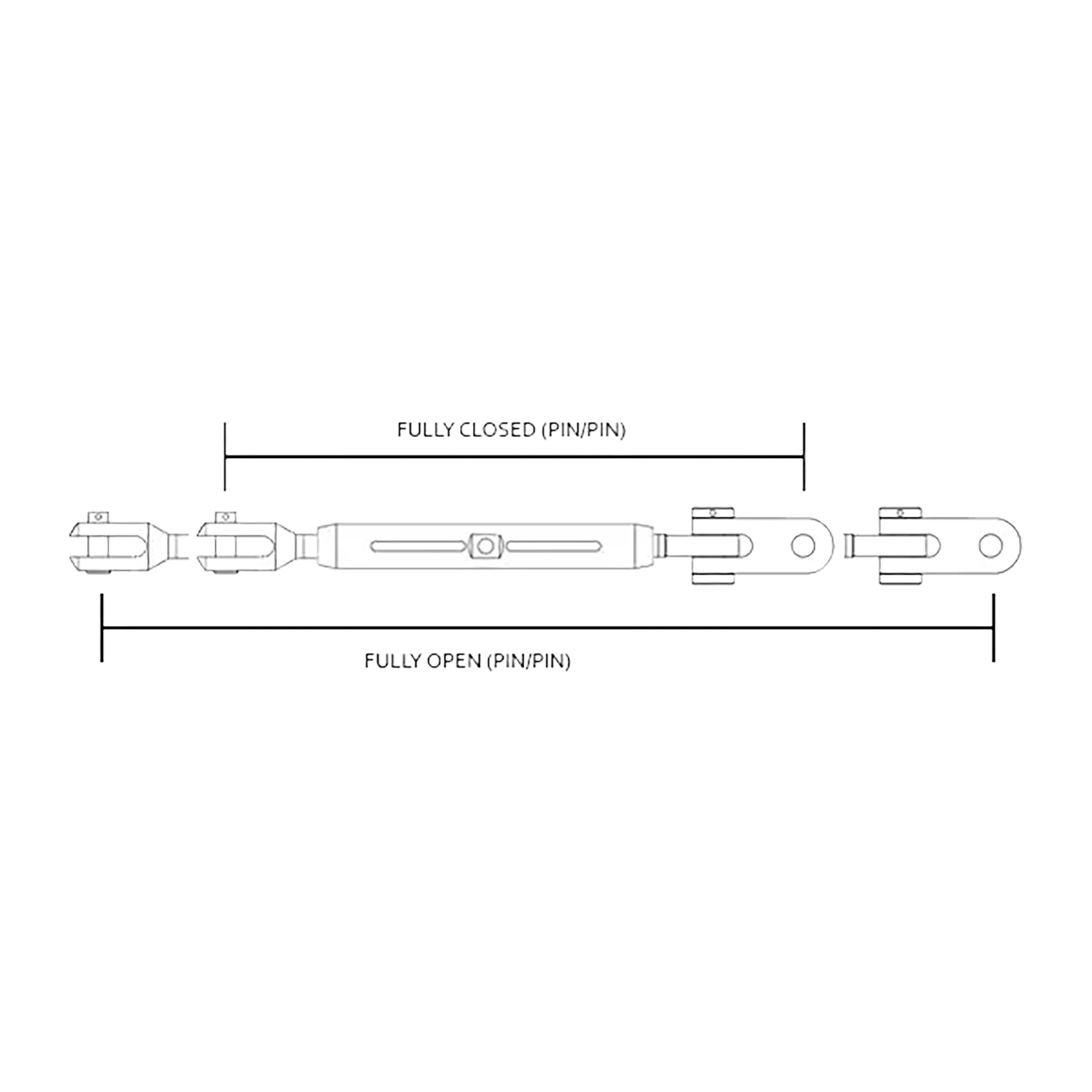

| Thread (UNF) | Fully Open (MM) | Fully Closed (MM) | Fully Open (INCH) | Fully Closed (INCH) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) | Fork Width (MM) | Fork Width (INCH) | Fork Pin (MM) | Fork Pin (INCH) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4" | 595 | 475 | 23.425 | 18.701 | 20 | 0.787 | 18.5 | 3/4" | 19.1 | 0.752 | 18.5 | 3/4" |
| 7/8" | 680 | 536 | 26.772 | 21.102 | 25 | 0.984 | 21.5 | 7/8" | 22.2 | 0.874 | 21.5 | 7/8" |
| 1" | 766 | 592 | 30.157 | 23.307 | 28 | 1.102 | 25 | 1" | 25.4 | 1 | 25 | 1" |
| 1 1/8" | 891 | 677 | 35.079 | 26.654 | 31.5 | 1.24 | 28.2 | 1 1/8" | 28.6 | 1.125 | 28.2 | 1 1/8" |
| 1 1/4" | 1044 | 786 | 41.102 | 30.945 | 35 | 1.378 | 31.5 | 1 1/4" | 31.8 | 1.252 | 31.5 | 1 1/4" |
| 1 3/8" | 1133 | 873 | 44.606 | 34.37 | 38 | 1.496 | 34.6 | 1 3/8" | 35 | 1.378 | 34.6 | 1 3/8" |
Description

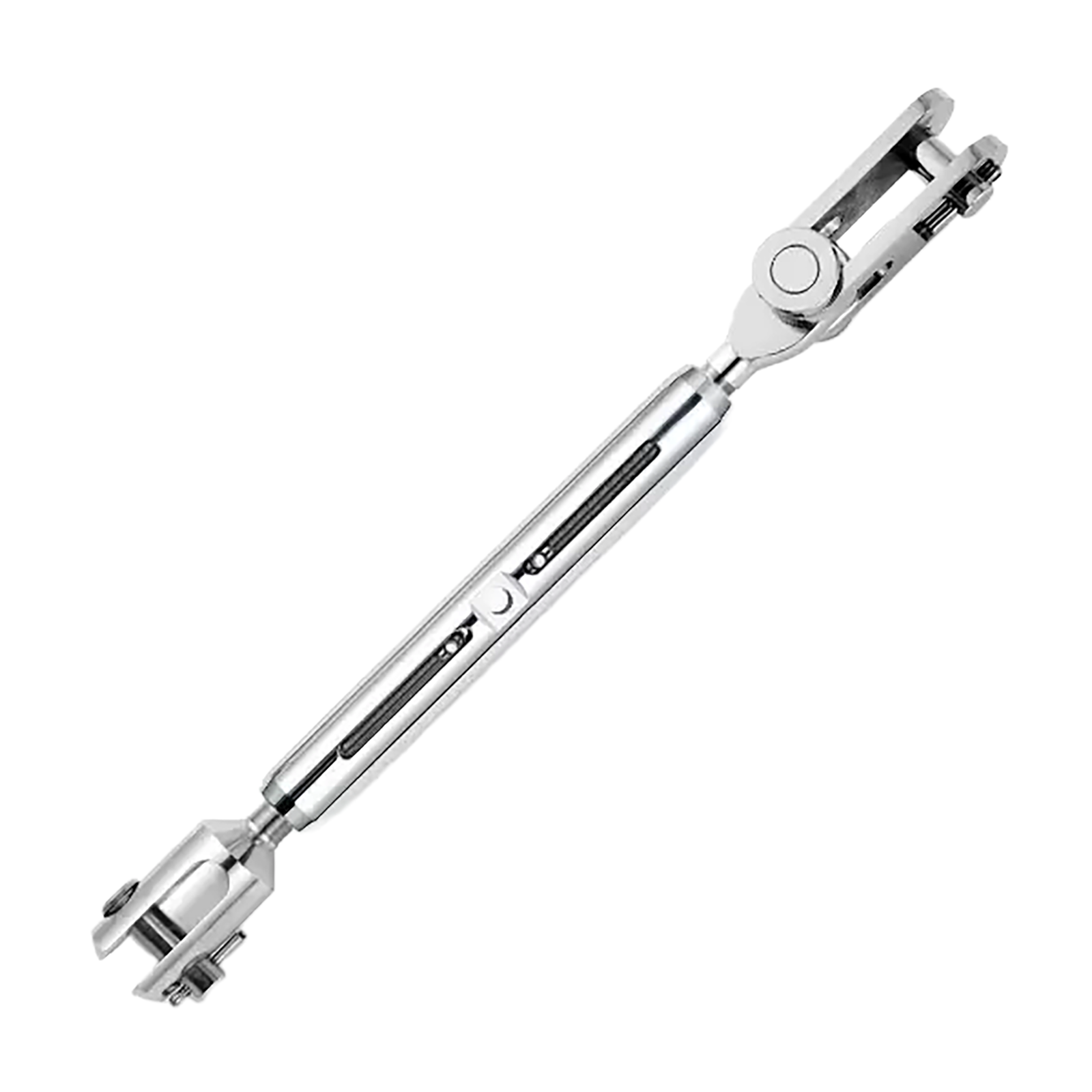

The Supajust Eye Toggle & Fork is a rugged open-body turnbuckle that combines articulation and robust connection in one assembly. The body is precision machined from polished solid 316 stainless steel, offering high corrosion resistance and excellent durability. Threaded bronze inserts are permanently sealed into each end to prevent galling and ensure smooth, reliable adjustment under load.
One end features an articulated eye toggle, allowing movement in two planes to absorb misalignment and preserve the integrity of the rig. The opposite end is fitted with a sturdy machined fork, offering a firm, dependable connection point where a fixed fork is required. The open-body design permits inspection of the thread engagement during adjustment. Once the correct tension is reached, traditional split pins can be used to lock the assembly securely in place.
Available across a broad range of UNF thread sizes and compatible with various wire diameters, the Supajust Eye Toggle & Fork is ideal for demanding marine, architectural, or industrial applications.
