Technical specifications

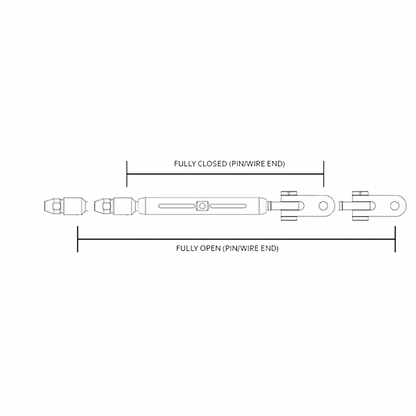

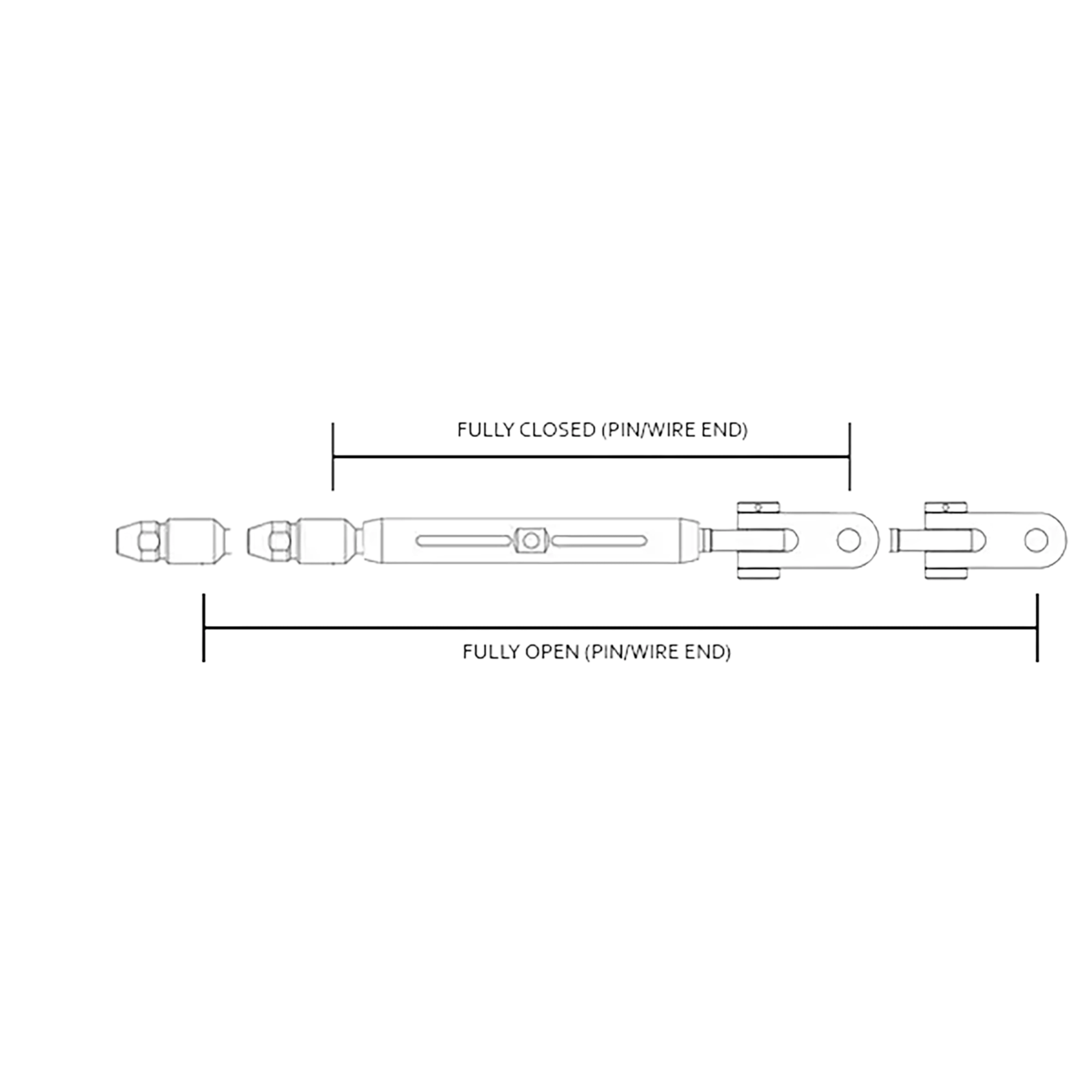

| Wire Size (Metric) | Wire Size (Imperial) | Thread (UNF) | Fully Open (MM) | Fully Closed (MM) | Fully Open (INCH) | Fully Closed (INCH) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 MM | - | 3/4" | 554 | 430 | 21.811 | 16.929 | 20 | 0.787 | 18.5 | 3/4" |
| 14 MM | 9/16" | 7/8" | 623 | 479 | 24.528 | 18.858 | 25 | 0.984 | 21.5 | 7/8" |
| 16 MM | - | 1" | 683 | 507 | 26.89 | 19.961 | 28 | 1.102 | 25 | 1" |
| 19 MM | - | 1 1/8" | 815 | 599 | 32.087 | 23.583 | 31.5 | 1.24 | 28.2 | 1 1/8" |
| 22 MM | - | 1 1/4" | 975 | 717 | 38.386 | 28.228 | 35 | 1.378 | 31.5 | 1 1/4" |
| 26 MM | 1" | 1 3/8" | 992 | 732 | 39.055 | 28.819 | 38 | 1.496 | 34.6 | 1 3/8" |
Description

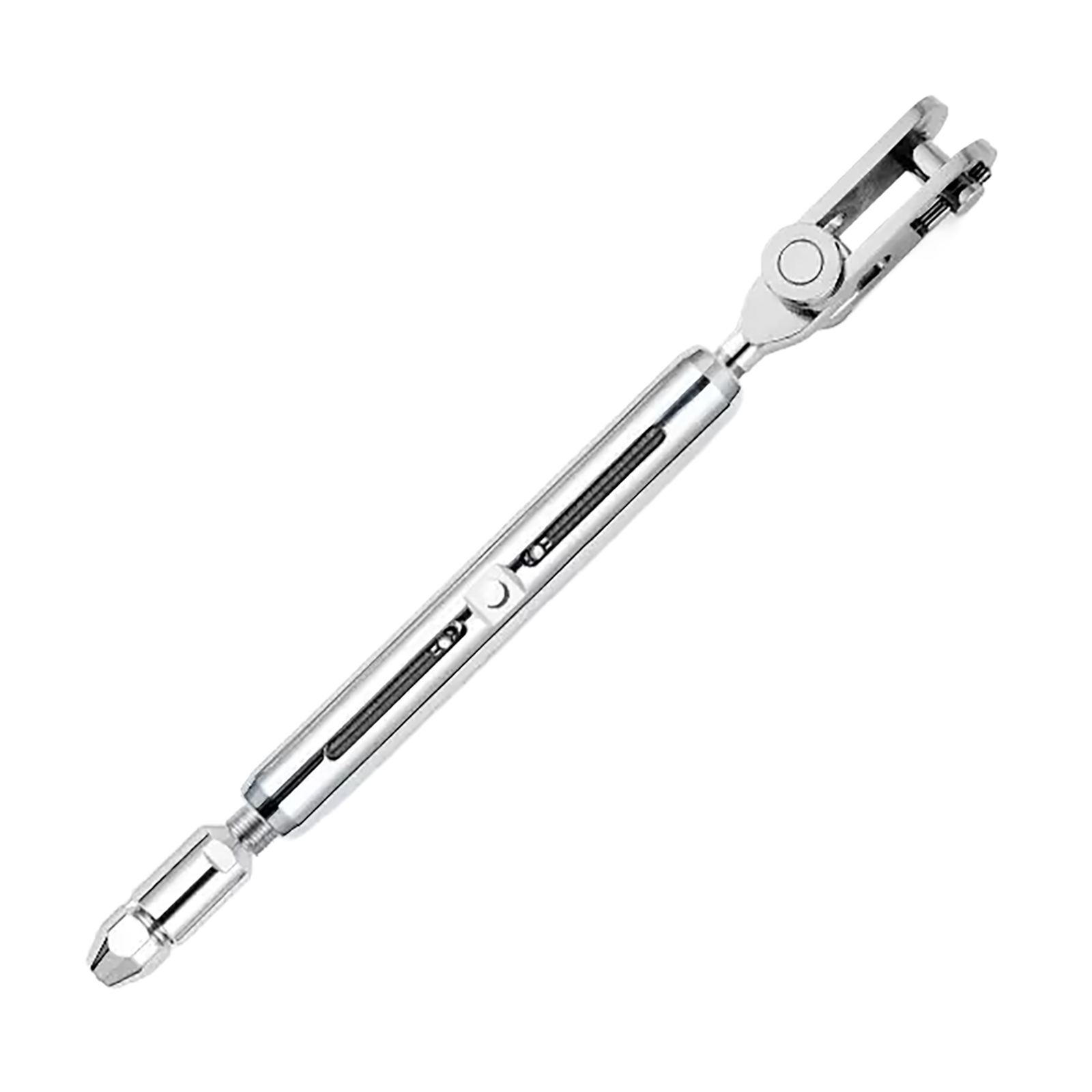

The Supajust Eye Toggle & Sta-Lok Stud combines the advantages of articulation and a self-fit stud termination in one versatile turnbuckle. The body is precision machined from polished solid 316 stainless steel, delivering outstanding strength and corrosion resistance. Threaded bronze inserts are permanently sealed at each end, ensuring smooth adjustment and preventing galling even under heavy loads.
One end features an eye toggle that offers movement in two planes, allowing for misalignment and dynamic loading without imposing undue stress on the assembly. The opposite end is terminated with a reusable Sta-Lok self-fit stud, providing a secure, swage-free connection that can be assembled on site using basic tools. When properly installed, the Sta-Lok stud delivers full rated strength. The open-body design permits visual inspection of the thread engagement, while positive locking is achieved via split pins.
Available in a range of UNF thread sizes and compatible with various wire diameters, the Supajust Eye Toggle & Sta-Lok Stud is ideal for demanding marine or architectural rigging applications.
