Technical specifications
| Thread (UNF) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) | Adjustment (MM) | Adjustment (INCH) |
|---|---|---|---|---|---|---|
| 3/8" | 9.9 | 0.39 | 9.5 | 3/8" | 77 | 3.032 |
| 7/16" | 11.5 | 0.453 | 11.1 | 7/16" | 86 | 3.386 |
| 1/2" | 13.1 | 0.787 | 12.7 | 1/2" | 98 | 3.858 |
| 5/8" | 16.3 | 0.984 | 16 | 5/8" | 108 | 4.252 |
| 3/4" | 19.1 | 0.752 | 18.5 | 3/4" | 124 | 4.882 |
Description

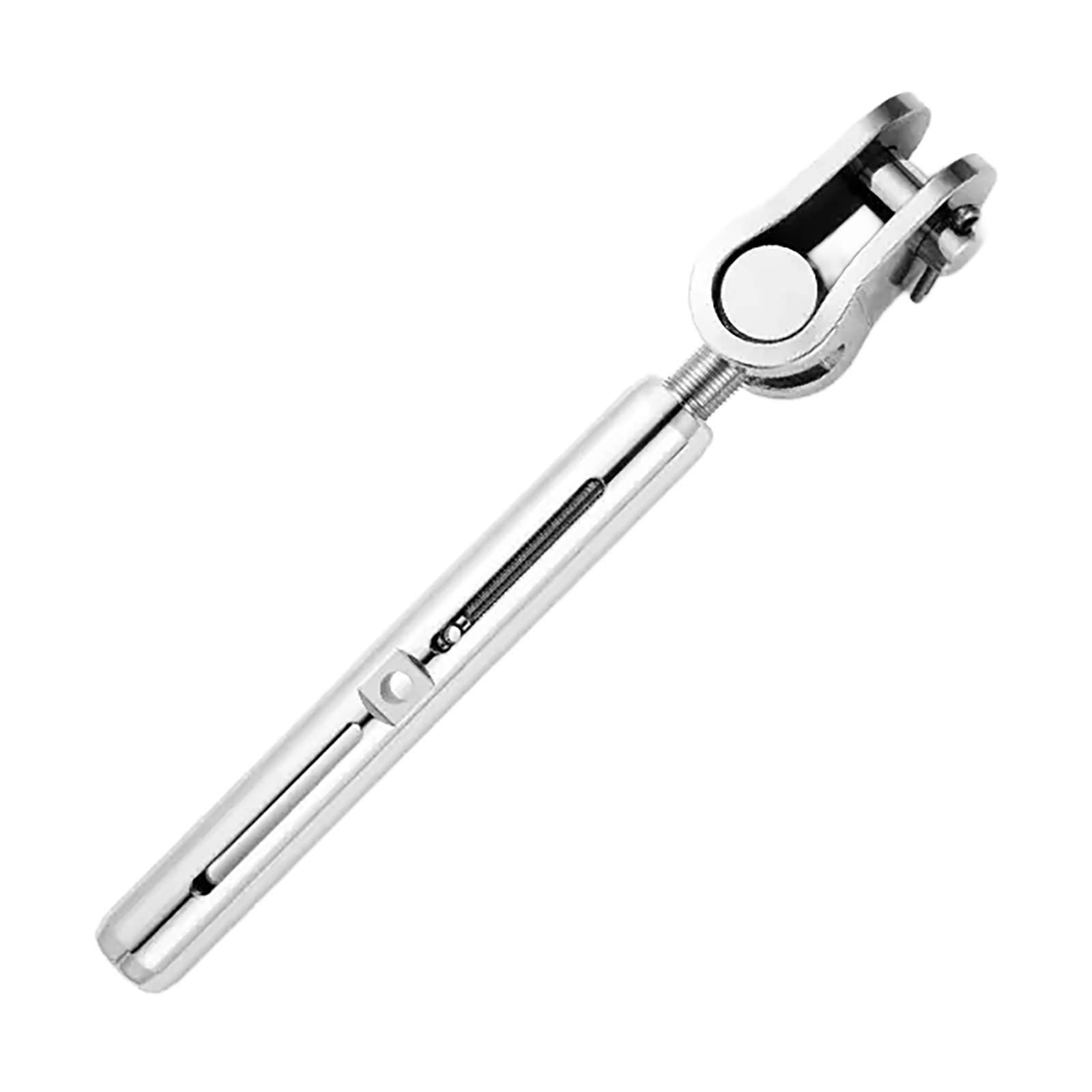

The Supajust Toggle & Blank is an open-body turnbuckle designed for flexibility and adaptability in rigging systems. Made from polished solid 316 stainless steel, it combines strength and corrosion resistance, with internally sealed threaded bronze inserts to prevent galling and ensure smooth adjustment.
One end of the fitting features a swivel toggle, which offers articulation in two planes to accommodate misalignment and reduce side loads on components. The opposite end is supplied blank, giving you the freedom to attach a custom termination or fitting of your choice as needed. The open-body design allows you to see the thread engagement during adjustment, making inspection and maintenance straightforward. Once tension is set, the assembly can be locked in place with traditional split pins to maintain stability.
Suitable for UNF thread variations and a wide range of wire diameters, the Supajust Toggle & Blank is ideal where a structured yet flexible turnbuckle solution is required.
