Technical specifications
| Thread (UNF) | Toggle Width (MM) | Toggle Width (INCH) | Toggle Pin (MM) | Toggle Pin (INCH) | Adjustment (MM) | Adjustment (INCH) |
|---|---|---|---|---|---|---|
| 3/8" | 10.8 | 0.425 | 9.5 | 3/8" | 77 | 3.032 |
| 7/16" | 12.3 | 0.484 | 11.1 | 7/16" | 86 | 3.386 |
| 1/2" | 13 | 0.512 | 12.7 | 1/2" | 98 | 3.858 |
| 5/8" | 18 | 0.709 | 16 | 5/8" | 108 | 4.252 |
Description

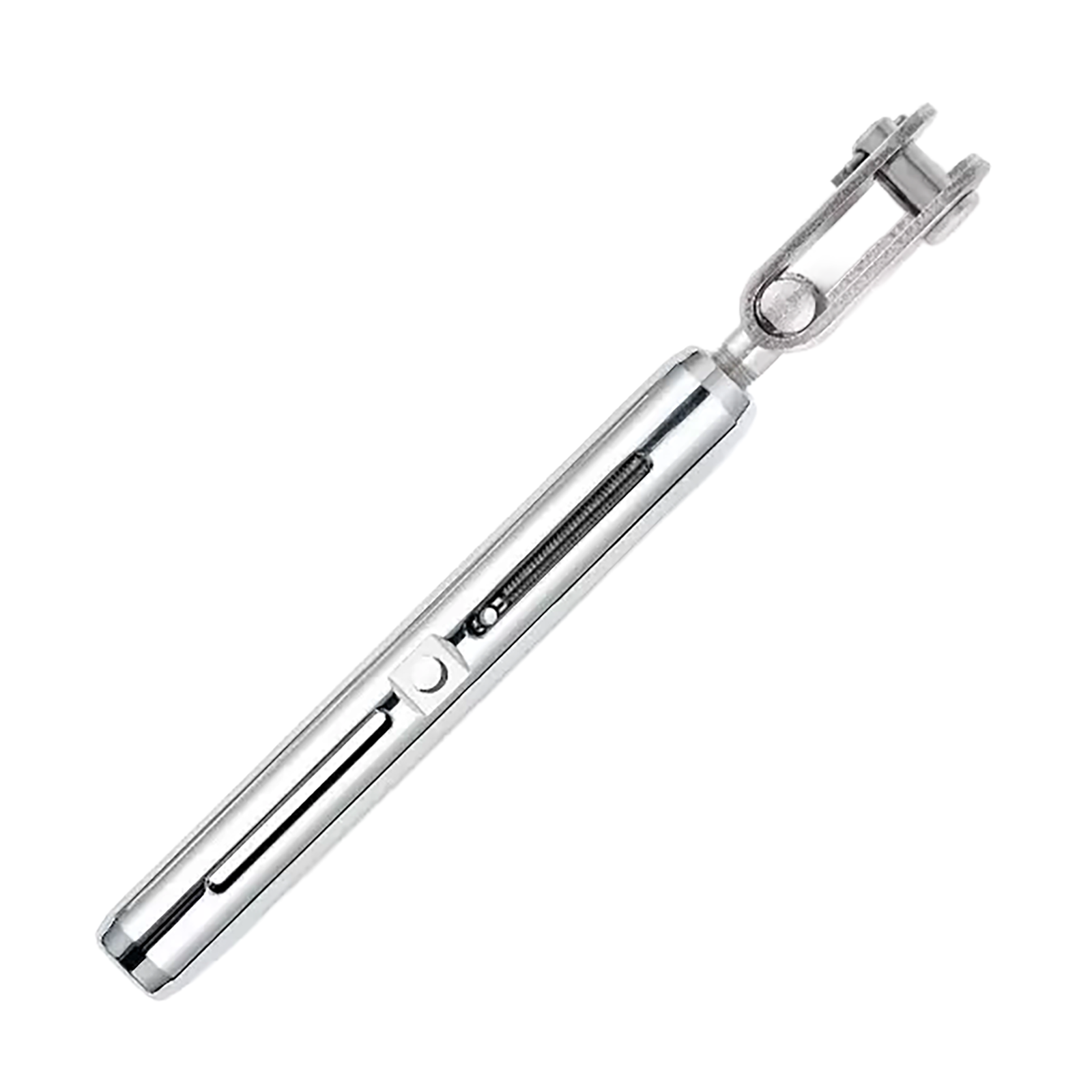

The Supajust U-Strap Toggle & Blank is a precision-engineered open-body turnbuckle designed for applications requiring flexibility, articulation, and strength. Crafted from polished solid 316 stainless steel, it offers exceptional corrosion resistance and durability in marine and architectural environments. Threaded bronze inserts are permanently sealed into each end of the body, preventing galling and ensuring smooth, consistent adjustment under heavy loads.
One end features a U-strap toggle, specifically designed for use with longer chainplates. This configuration allows articulation in two planes, reducing strain from misalignment and movement. The opposite end is supplied blank, providing versatility for custom fittings or future terminations. The open-body design allows easy inspection of thread engagement, while traditional split pins can be used for positive locking once the correct tension is set.
Available in a range of thread sizes, the Supajust U-Strap Toggle & Blank delivers reliability, adjustability, and professional-grade performance in demanding conditions.
