Technical specifications

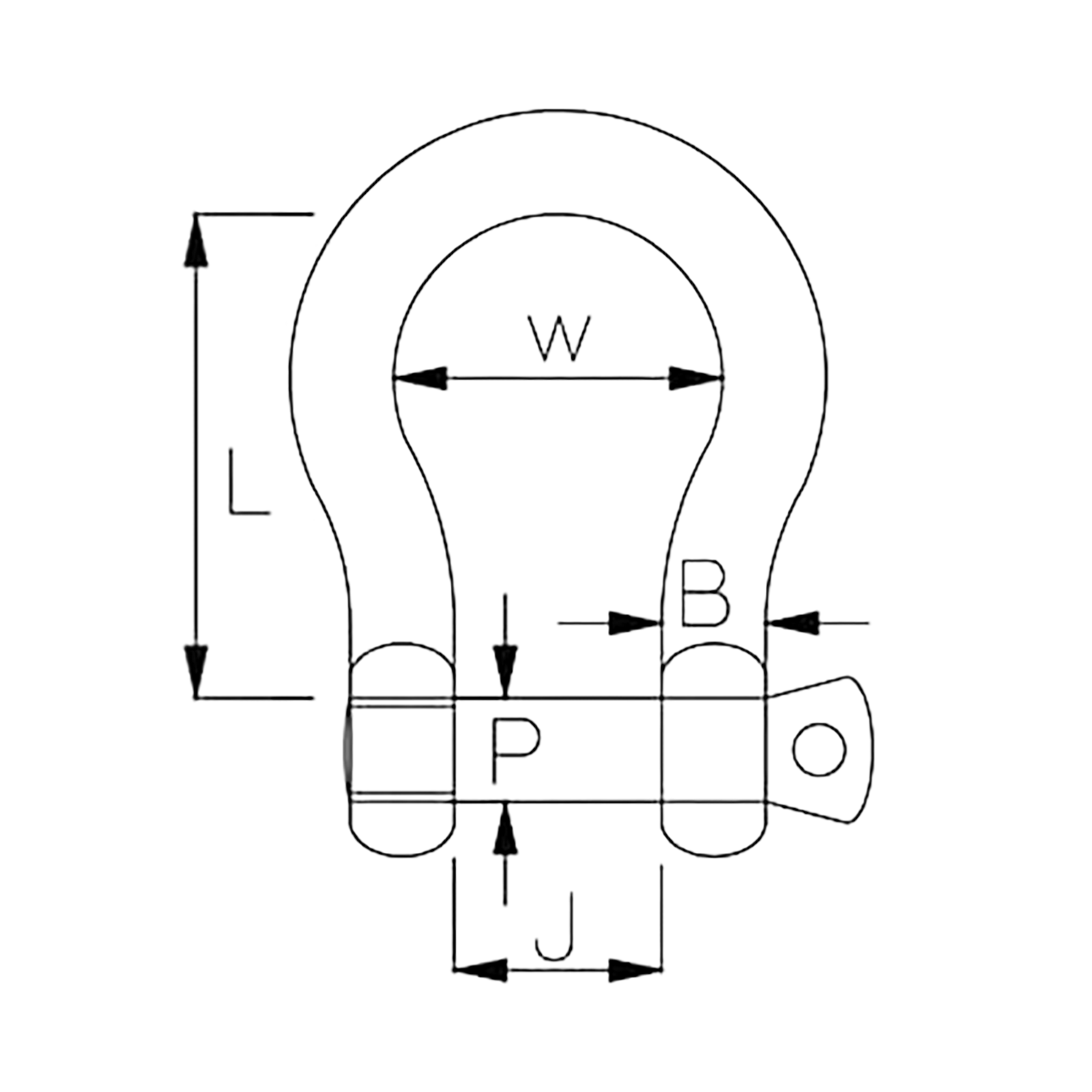

| Size | P (mm) | B (mm) | J (mm) | W (mm) | L (mm) | Break Load (Kg) |
|---|---|---|---|---|---|---|
| 4mm | 4 | 4 | 8 | 12 | 18 | 600 |
| 5mm | 5 | 5 | 10 | 16 | 22 | 1200 |
| 6mm | 6 | 6 | 13 | 19 | 28 | 1600 |
| 8mm | 8 | 8 | 16 | 25 | 35 | 2400 |
| 10mm | 9.5 | 9.5 | 19 | 28 | 38 | 3800 |
| 11mm | 11 | 11 | 22 | 33 | 46 | 4800 |
| 12mm | 12.7 | 12.7 | 26 | 38 | 52 | 6000 |
| 16mm | 16 | 14.3 | 29 | 43 | 60 | 8000 |
Description

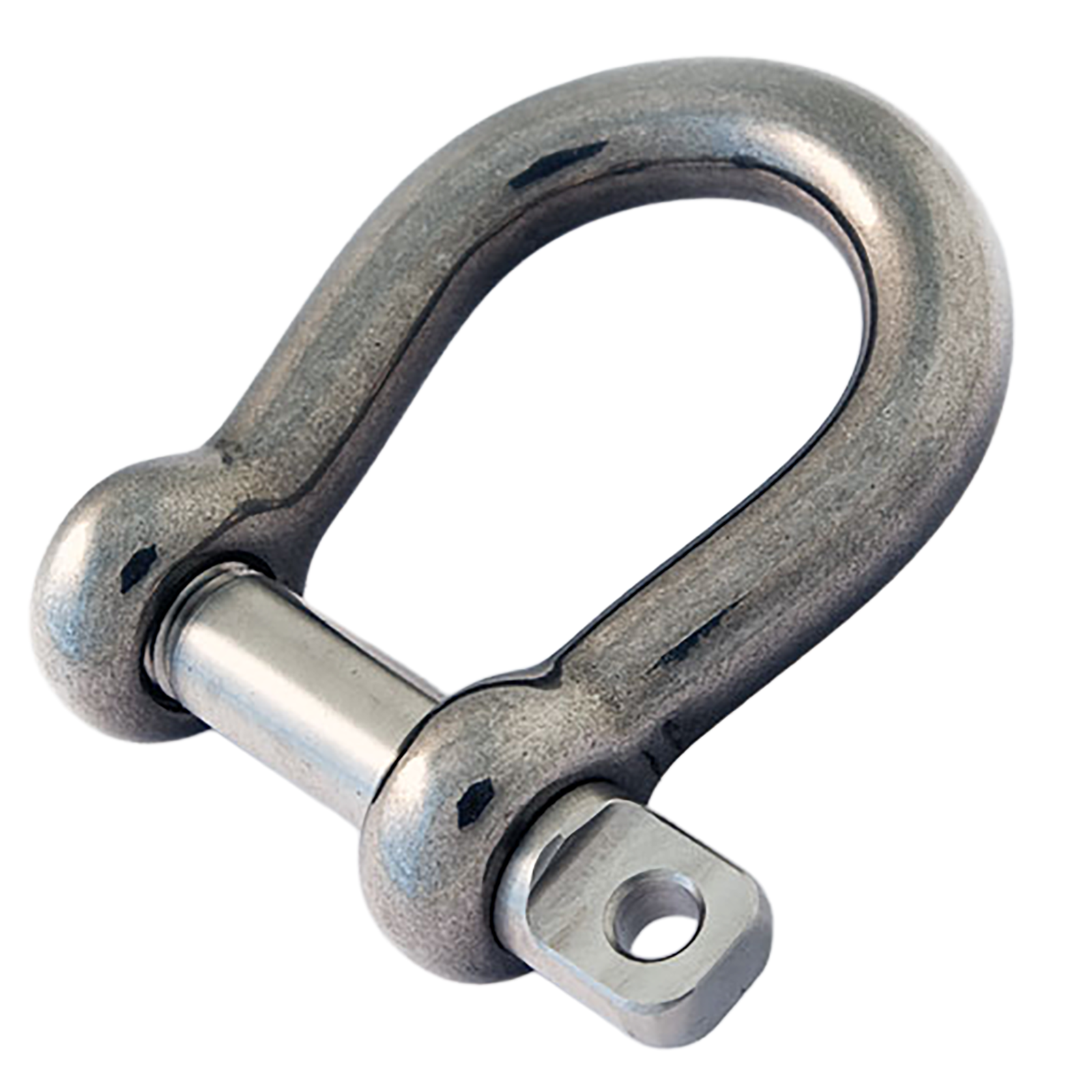

The Petersen Bow Shackle – Standard Pin is a UK-forged stainless steel shackle engineered for strength, safety, and long-term reliability in demanding marine and rigging environments. Manufactured from high-quality 316 stainless steel using an upset forging process, it retains optimal grain structure for enhanced fatigue resistance and corrosion protection. The classic bow shape provides generous internal clearance, making it suitable for multiple attachments and varied rigging configurations.
Fitted with a standard pin, the shackle ensures secure closure and easy handling while maintaining full load integrity. Each unit is proof-tested to twice its working load limit and produced with a 6:1 safety factor, delivering consistent performance under heavy loads. Precision machining and a polished finish provide excellent fit and durability.
Proudly UK-forged and finished to exacting standards, the Petersen Bow Shackle – Standard Pin is trusted by professionals for marine, lifting, and structural applications.
