Technical specifications

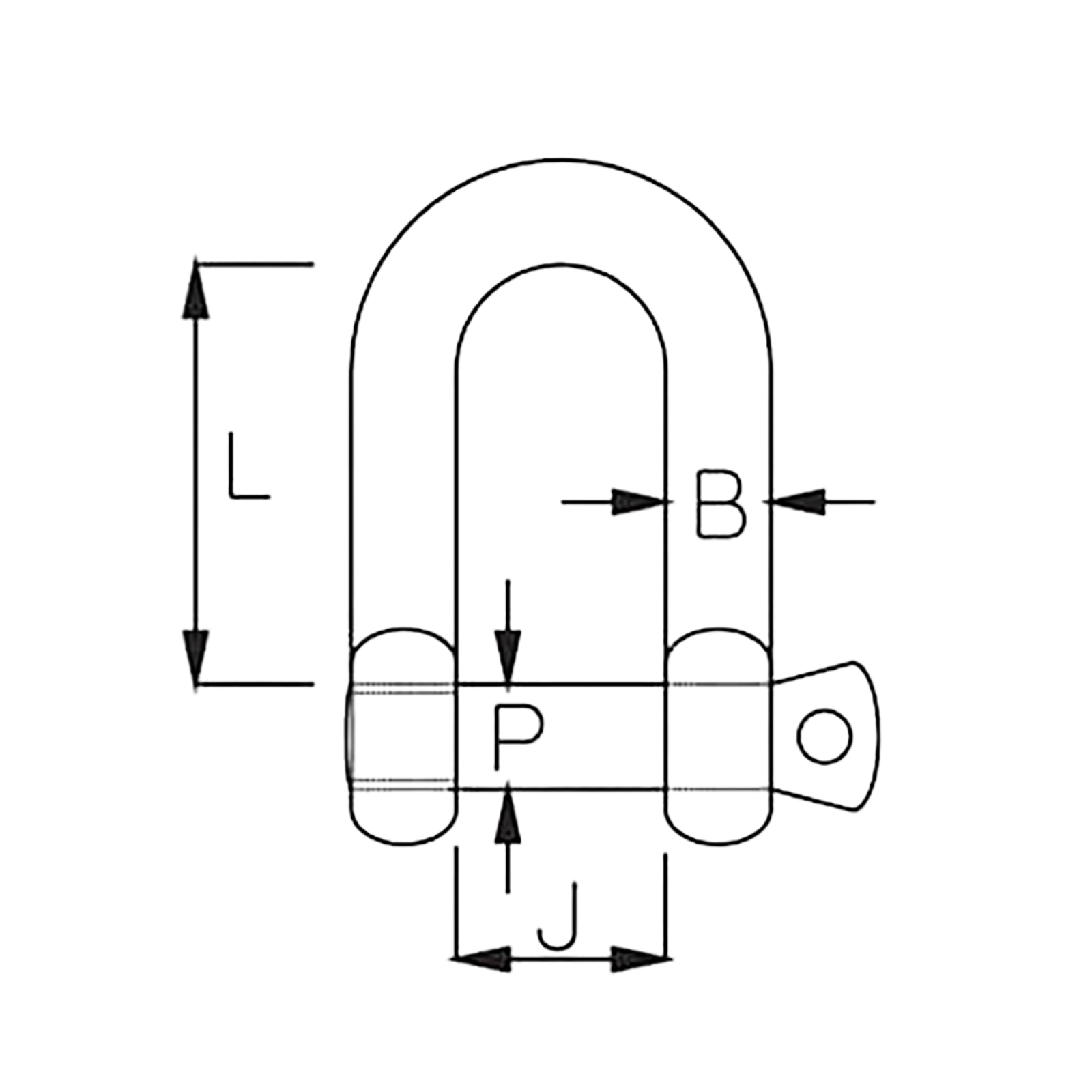

| Size | P (mm) | B (mm) | J (mm) | L (mm) | Break Load (Kg) |
|---|---|---|---|---|---|
| 4mm | 4 | 4 | 8 | 16 | 800 |
| 5mm | 5 | 5 | 10 | 20 | 1500 |
| 6mm | 6 | 6 | 13 | 25 | 1950 |
| 8mm | 8 | 8 | 16 | 32 | 3000 |
| 10mm | 9.5 | 9.5 | 19 | 38 | 4800 |
| 11mm | 11 | 11 | 22 | 44 | 6000 |
| 12mm | 12.7 | 12.7 | 26 | 52 | 7500 |
| 16mm | 16 | 14.3 | 29 | 58 | 10000 |
Description

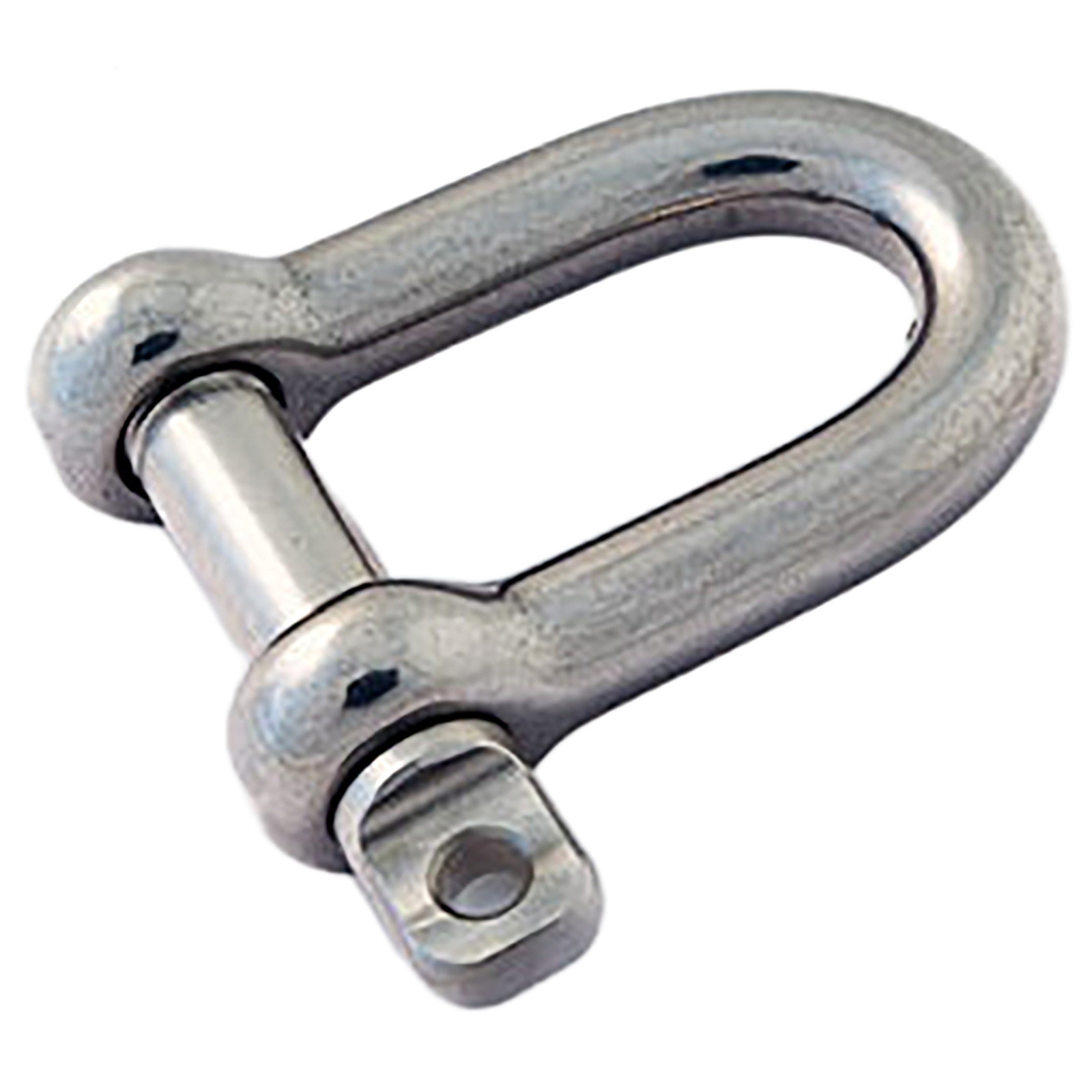

The Petersen Stainless Steel D Shackle – Standard Pin is a UK-forged, high-quality fastening component designed for strength, precision, and corrosion resistance. Manufactured from marine-grade 316 stainless steel using an upset forging process, it maintains excellent grain flow for superior fatigue resistance and long-term durability. The D-shaped design provides maximum strength under straight-line loads while keeping a compact profile, making it ideal where space is limited.
Fitted with a standard screw-collar pin, the shackle allows easy and secure connection of rigging components, ropes, or chains. The simple pin mechanism ensures reliable closure and straightforward inspection, suitable for both permanent and temporary applications. Each shackle is proof-tested to twice its working load limit and built with a 6:1 safety factor, ensuring dependable performance in demanding conditions.
Proudly UK-forged and finished to exacting standards, this shackle is perfect for marine, lifting, and architectural rigging uses.
