Technical specifications
| Diameter (mm) | Weight (kg/100m) | Min Breaking Load (kN) | Min Breaking Load (kg) |
|---|---|---|---|
| 2 | 1.95 | 3.14 | 320 |
| 2.5 | 3.1 | 4.9 | 500 |
| 3 | 4.5 | 7.06 | 720 |
| 4 | 8.03 | 12.6 | 1285 |
| 5 | 12.57 | 19.71 | 2010 |
| 6 | 18.03 | 28.22 | 2878 |
| 7 | 24.8 | 34.82 | 3551 |
| 8 | 31.8 | 45.52 | 4642 |
| 10 | 50 | 71.15 | 7255 |
| 12 | 72.1 | 102.07 | 10408 |
| 14 | 97.1 | 139 | 14170 |
Description

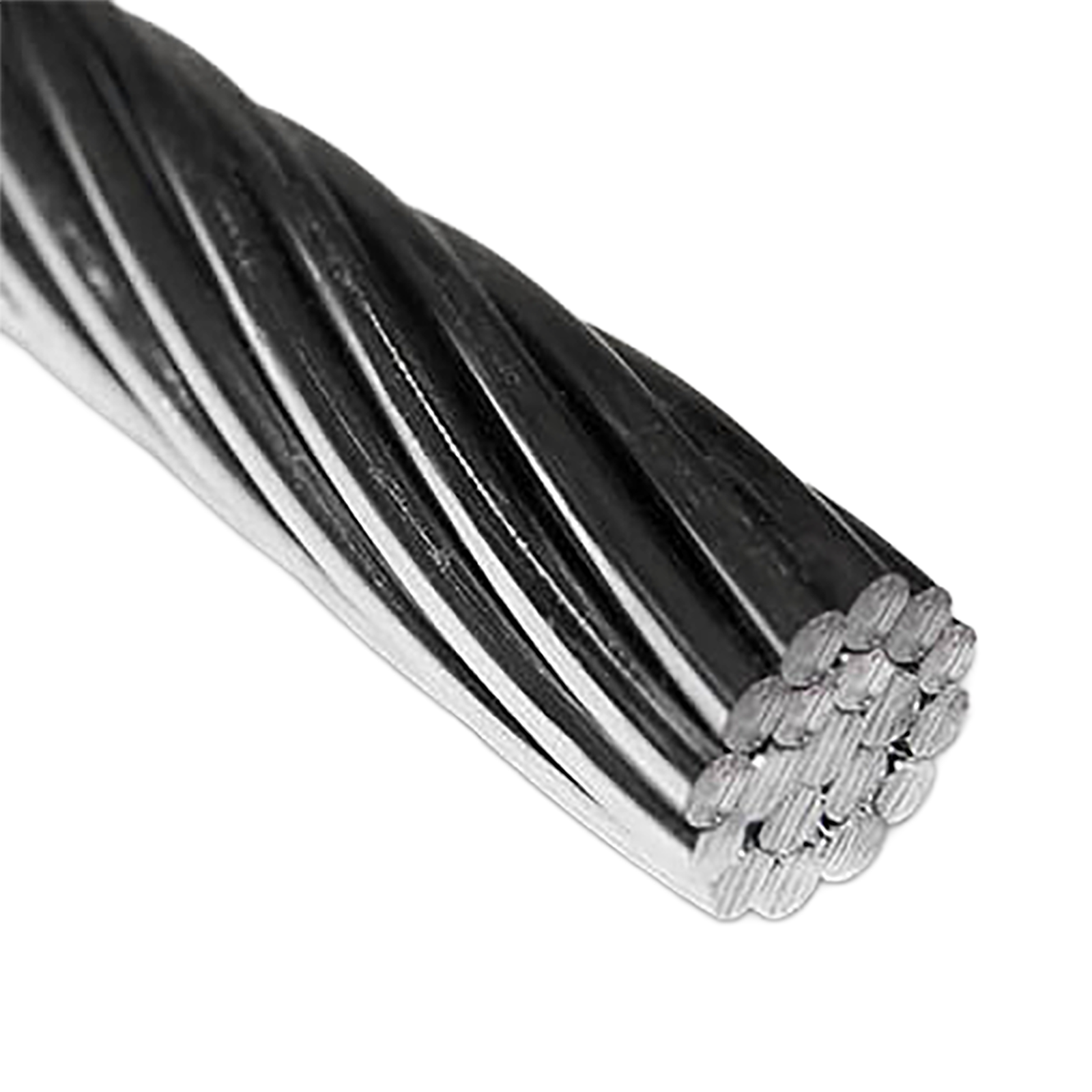

KOS Stainless Steel Wire Rope is manufactured from 316 marine grade stainless steel to specification 1.4401, a material recognised worldwide for its superior quality and proven resistance in harsh marine environments.

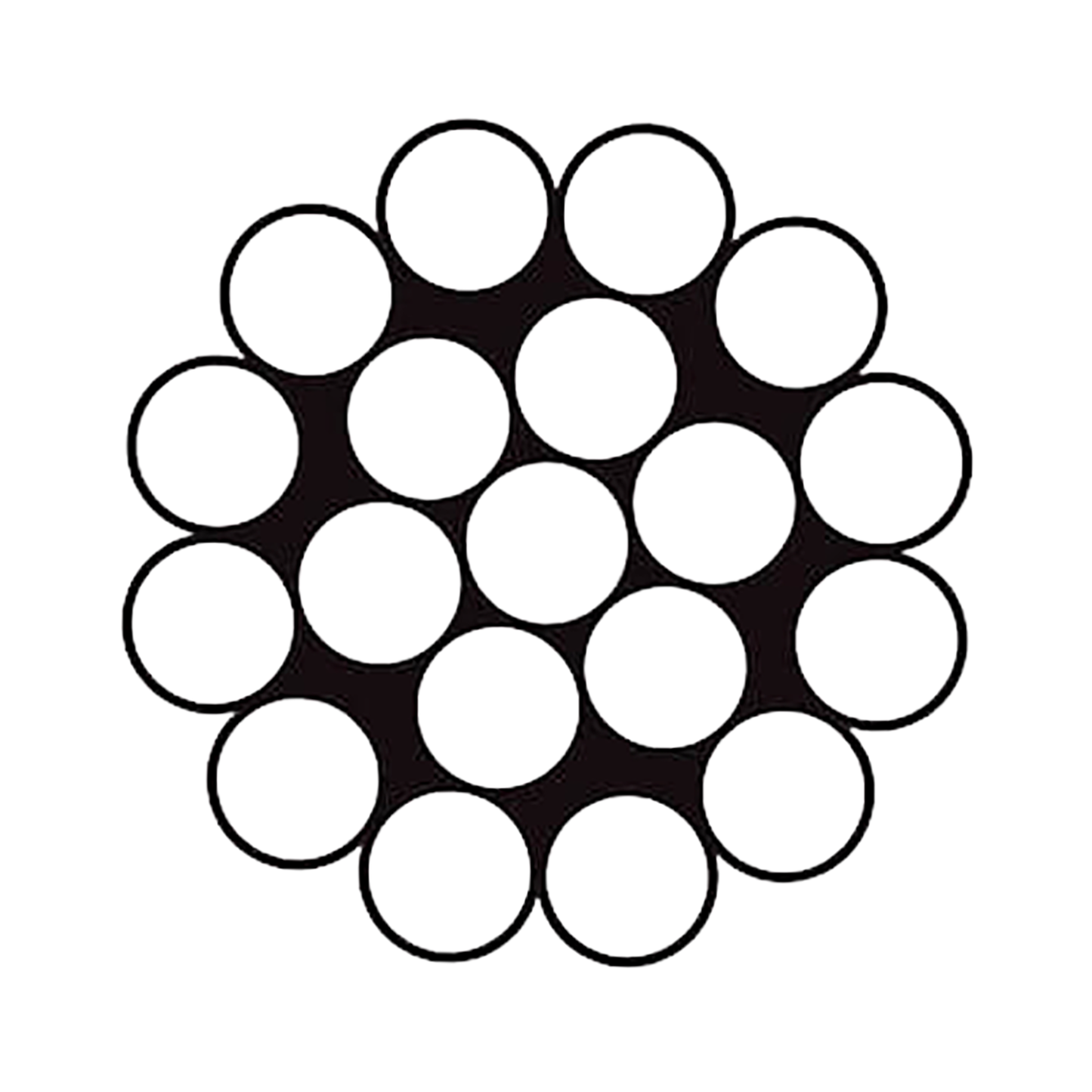

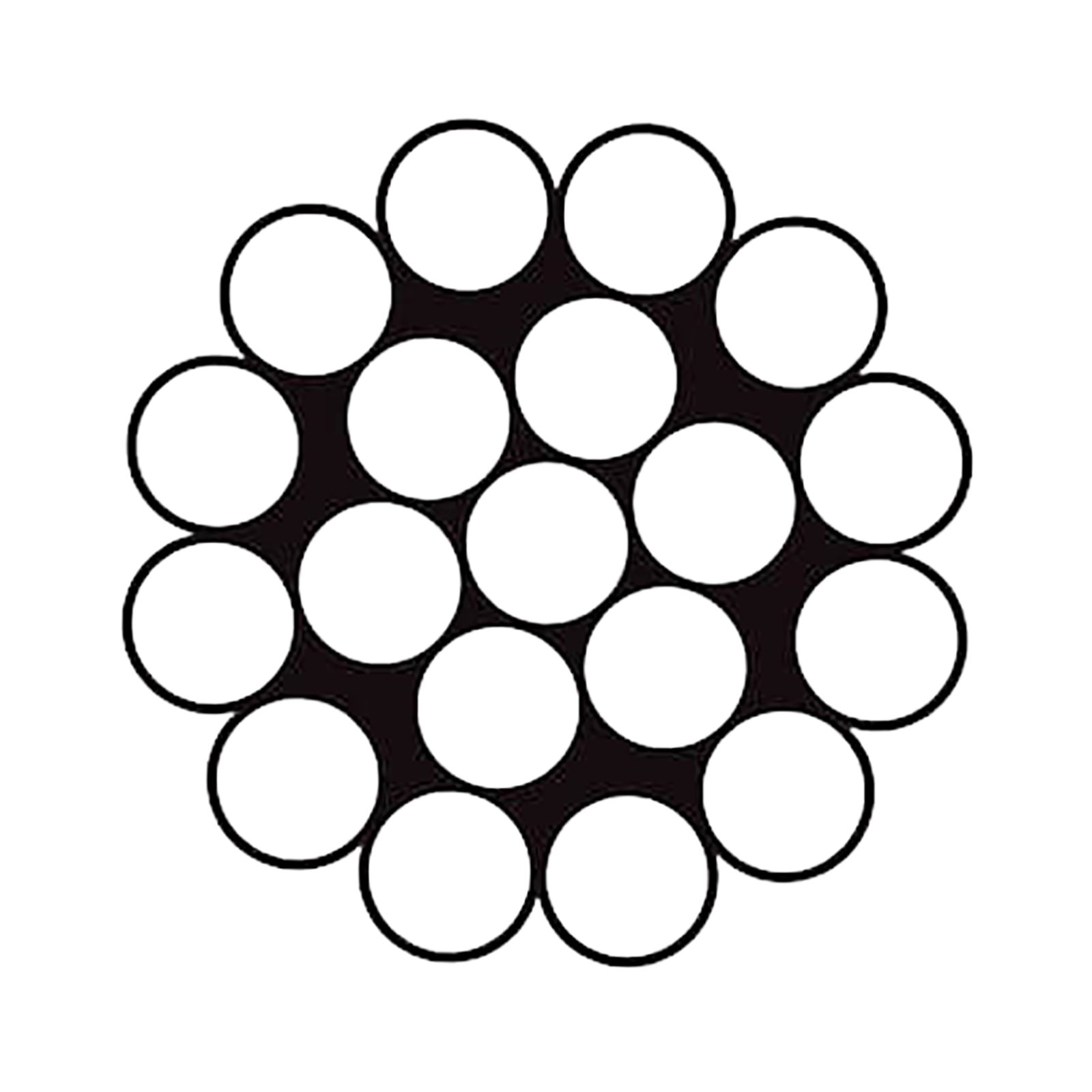

Built in a 1×19 construction, this cable is the most popular choice for general applications thanks to its combination of low stretch and high breaking load. Compared with other stainless steel wire ropes, the 1×19 construction delivers greater strength and reduced elasticity, though it is less flexible as a result. This makes it particularly well suited for yacht standing rigging, architectural structural rigging, and balustrading projects where strength, durability, and a clean aesthetic are essential.
Ropes & Wire are committed to offering the highest quality at the best value, and will beat any like-for-like quote. Contact us today to discuss your standing rigging, architectural, or balustrading requirements.
