Technical specifications
| Diameter (mm) | Weight (kg/100m) | Min Breaking Load (kN) | Min Breaking Load (kg) |
|---|---|---|---|
| 2 | 1.7 | 2.22 | 226 |
| 2.5 | 2.6 | 3.47 | 354 |
| 3 | 3.95 | 5 | 510 |
| 4 | 7.05 | 8.89 | 907 |
| 5 | 10.35 | 13.91 | 1418 |
| 6 | 15.05 | 20.02 | 2041 |
| 7 | 18.2 | 27.3 | 2785 |
| 8 | 26.2 | 35.63 | 3633 |
Description

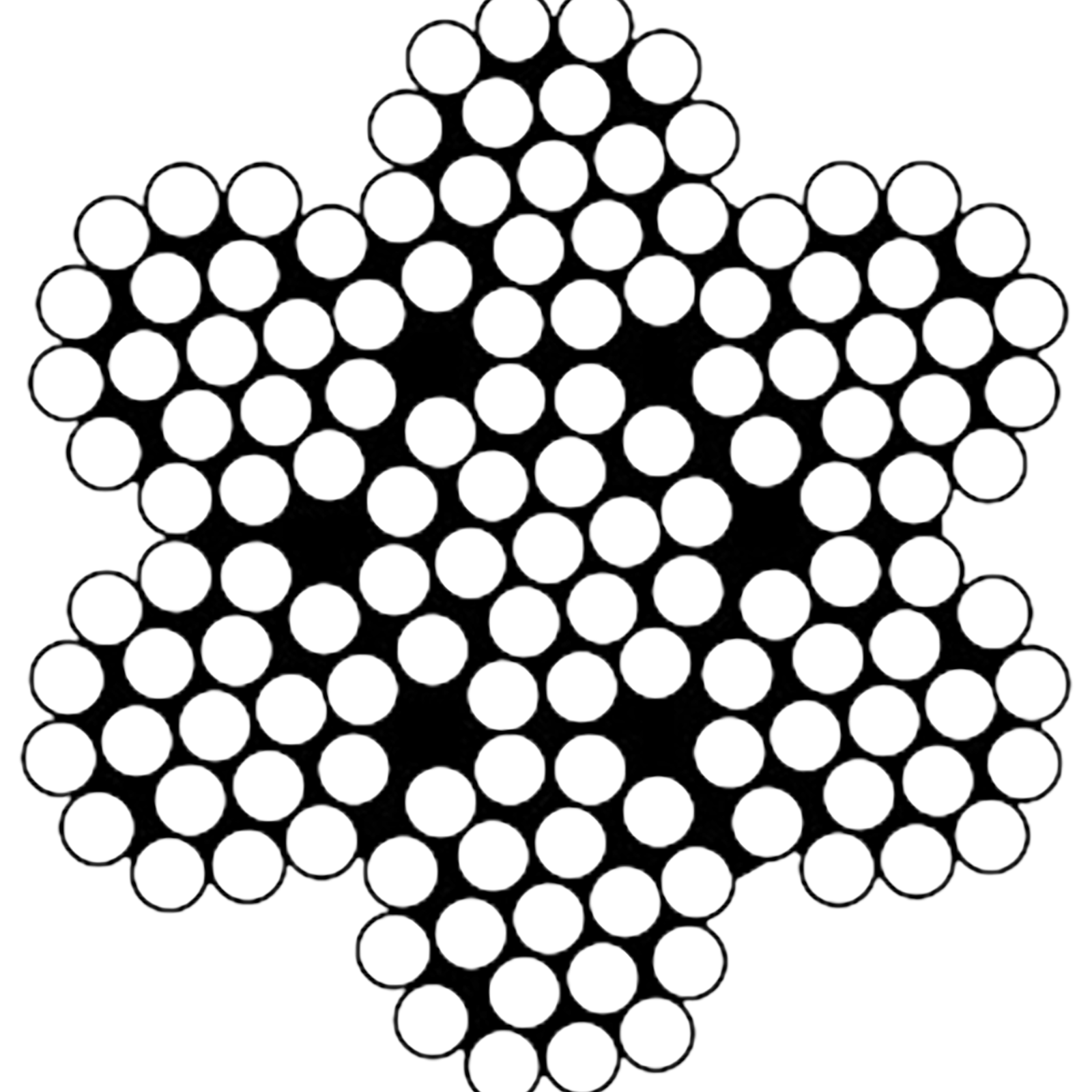

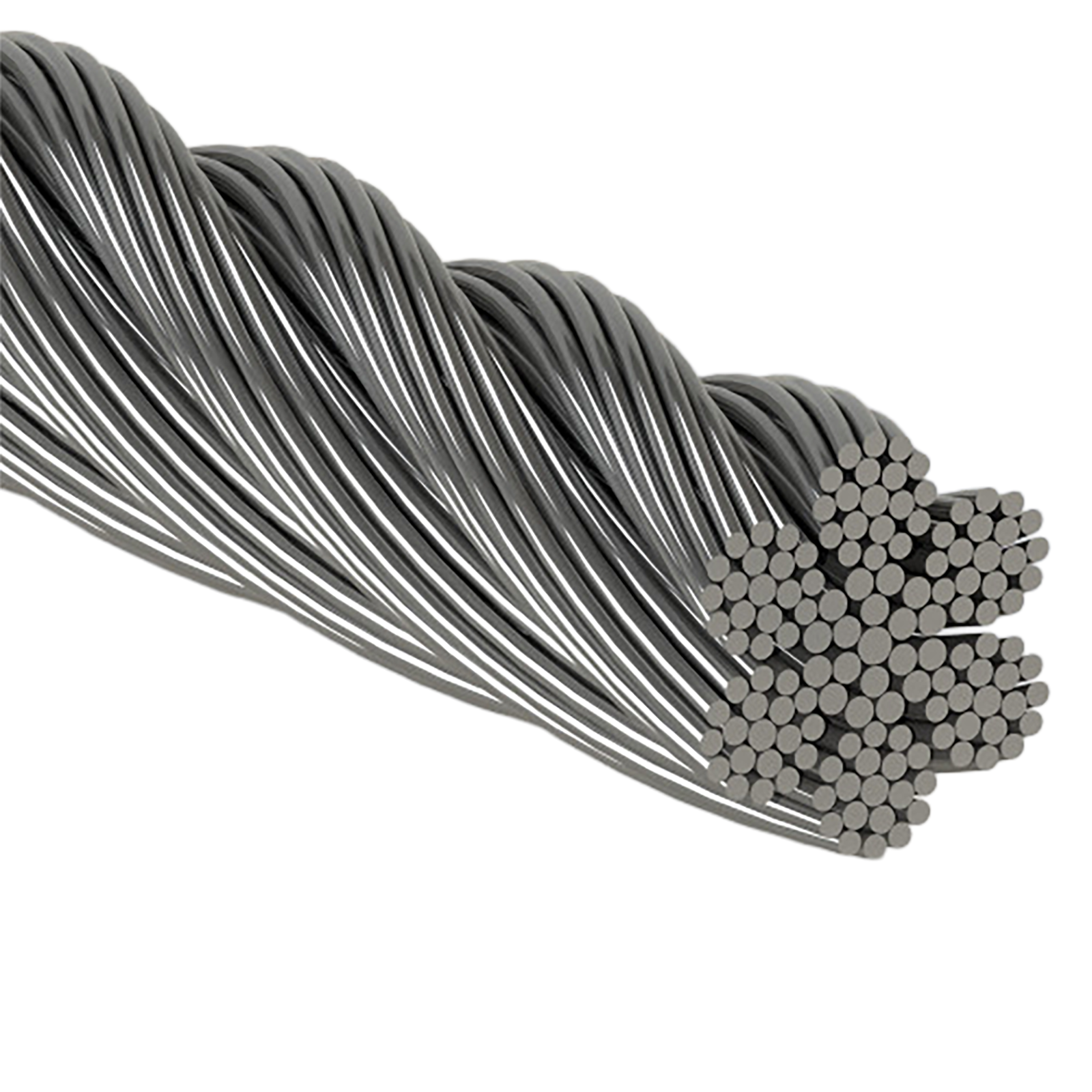

The 7×19 stainless steel wire rope is the most flexible of the multi-strand wire ropes, designed to handle curves, corners, and angles with ease. Manufactured from high-quality 316 marine grade stainless steel, this construction delivers excellent durability and corrosion resistance in demanding environments. Its superior bending capability makes it the preferred choice for applications where flexibility is critical, such as winch cables, guardrails, and balustrades.
With a proven balance of strength and pliability, the 7×19 wire rope is highly versatile and reliable across both marine and architectural uses.
Please contact Ropes & Wire for any standing rigging, architectural, or balustrading requirements.
We will beat any like-for-like quote!
