Technical specifications
| Diameter (mm) | Construction | Grade | Material | Notes |
|---|---|---|---|---|
| 3 | 1x7 | 316 / 1.4401 | Stainless Steel | Low stretch, high strength |
| 4 | 1x7 | 316 / 1.4401 | Stainless Steel | Low stretch, high strength |
| 5 | 1x19 | 316 / 1.4401 | Stainless Steel | Improved break load |
| 6 | 1x19 | 316 / 1.4401 | Stainless Steel | Common for standing rigging |
| 8 | 1x19 | 316 / 1.4401 | Stainless Steel | Marine corrosion resistance |
| 10 | 1x19 | 316 / 1.4401 | Stainless Steel | Minimal stretch |
| 12 | 1x19 | 316 / 1.4401 | Stainless Steel | High load capability |
| 14 | 1x25 | 316 / 1.4401 | Stainless Steel | Heavy-duty structural use |
| 16 | 1x25 | 316 / 1.4401 | Stainless Steel | Architectural rigging |
Description

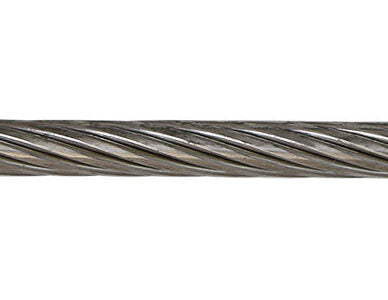

KOS Stainless Steel Compacted Strand Wire (316 Grade) is engineered for high-performance marine applications, offering superior strength and low stretch. Manufactured from premium 316 marine-grade stainless steel (EN 1.4401), it delivers exceptional corrosion resistance and durability in harsh saltwater environments.
Through a specialist compaction process, this wire achieves up to 30% higher break loads than standard 1×19 constructions, with minimal increase in weight. It’s ideal for standing rigging on yachts, as well as balustrades and structural installations where strength and reliability are critical.
Available in 1×7 construction (3mm–4mm), 1×19 (5mm–12mm), and 1×25 (14mm+), KOS compacted strand wire offers proven performance for racing sailors, riggers, and marine professionals. Contact us for custom rigging or architectural requirements, we’ll beat any like-for-like quote.
